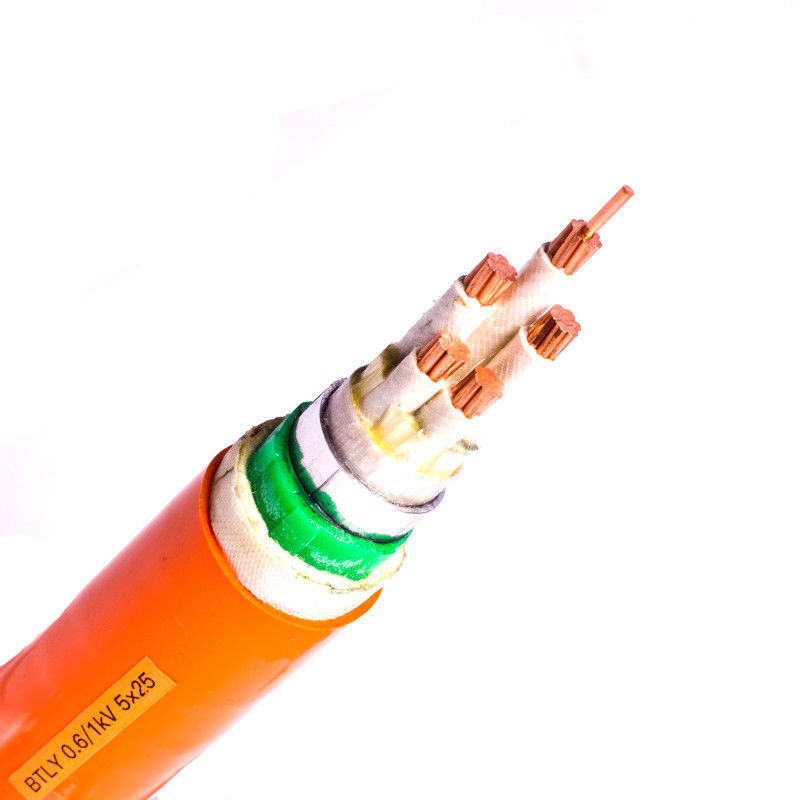

1000m 5 Core 5x25mm2 Mineral Insulated Metal Sheathed Cable Fire Resistance

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO9001/ISO14001/OHSAS18001/CCC/CE
Minimum Order Quantity: 1000M
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability: 1000M/Day
Application: Construction,Industrial,Underground,Power Station,BUILDING Type: Mineral Insulated
Conductor: Bare Copper Voltage: 0.6/1kV
Insulation: Mica Tape + Mineral Material Sheath: Aluminium
Color: Orange Core: 1C, 2C, 3C, 4C,5C, 3+1C, 3+2C,4+1C
High Light:

5x25mm2 insulated power cable

,

1000m mineral insulated heating cable

,

5x25mm2 mineral insulated metal sheathed cable

GN-BTLY 5 Cores 5x25MM2 Mineral Insulated Aluminum sheath Fireproof, Fire Resistance Cables


Production Description:




1. Installation conditions



During the cable laying, the ambient temperature must be above 0℃. Permissible bending radius should not be less than 15 times of outside diameter of cable. Besides being used for direct buried, it can be used in tunnels, cable trenches, cable bridges, cable trays and cable shafts.



2. Applications



It is suitable for transmission and distribution lines of important places such as high buildings, rail transits, hospitals, shopping malls, exhibition halls, carports, entertainment venues, data centers, etc.



3 . Properties and advantages



1) fireproof performance



The cable is of excellent fire resistance. It conforms to the highest fire resistance rating 950℃ 3h specified in British Standard BS6387. Besides, it can withstand water spray and mechanical impact. As a result, it is full beyond the fire resistance requirement 750℃ 90min specified in GB/T19216.21 and GB/T19216.11.



2) longer continuous length



The length of single core and multi-core cable can meet the demands of power supply. The continuous length of each cable can be more than 1000m.



3) larger cross-section area



The maximum cross-section area of single core cable can be 630mm². The maximum cross-section area of multi-core cable can be 300mm².



4) flexibility



The cable can be coiled in cable trays. bending radius≤20D(D means the outside diameter of cable)



5) smoke-free and nontoxic during combustion



The cable will not produce harmful gas or cause secondary pollution. It is an environment-friendly product.



6) good safety performance



Fireproof cable can maintain normal power supply in the flame so that people can use fire fighting apparatuses and escape facilities. In this way, personal security will be reliably guaranteed and economic losses will be reduced.



7) longer service life



Inorganic insulating material is of high temperature resistance and ageing resistance. Its service life is many times longer than that of organic insulated cable. At normal operation, its maximum service life will be more than 100 years.



8) convenient transportation and installation



The transportation and installation of fireproof cable including the installation of accessories, similar as those of ordinary cable, is easy.



4. Application:



1. Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

2. Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

3. High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

4. Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

5. Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

6. General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.





5. Special Characteristics:



1. Fire resistant

Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387.

2. High operation temperature

Continuous operating temperature up to 250 °C, and for short periods up to approaching the melting point of copper 1083 °C.

3. Inherent flameproof barrier

With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames.

4. High mechanical strength

Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening.

5. Pliable

Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes.

6. Non-ageing, Integral earth continuity, Small overall diameter

Waterproof, Corrosion resistant, Radiation resistant, Excellent electric shielding, Easy installation, Long service life





6. Tabular data

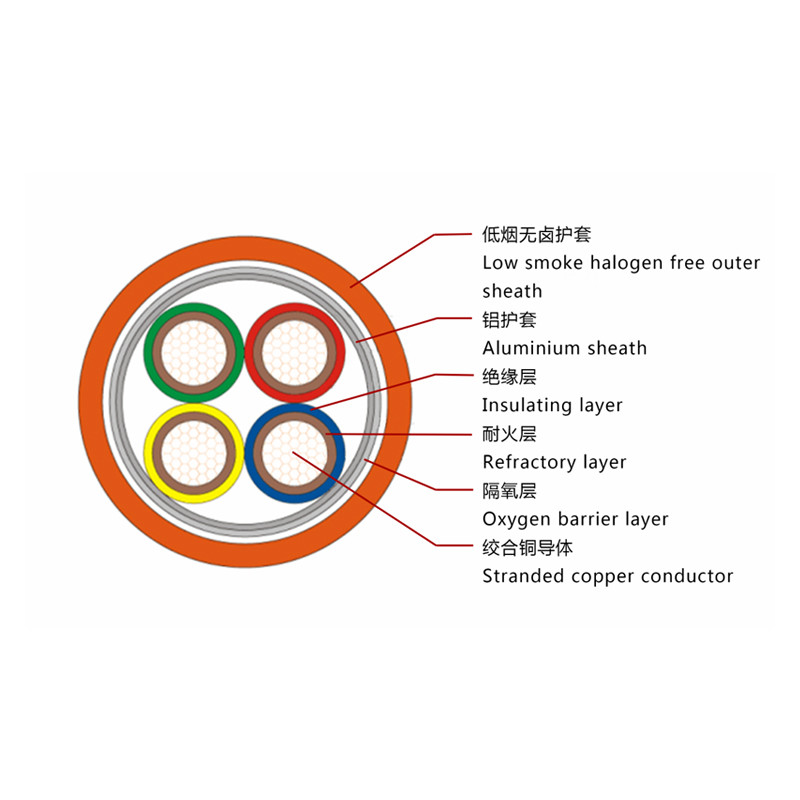

Construction

1000m 5 Core 5x25mm2 Mineral Insulated Metal Sheathed Cable Fire Resistance 0 1. Conductor material: Bare Copper
2. Outer Sheath LSZH
3.Insulation Material mica tape + mineral material
