35mm 5 Core 3x1.5mm2 Mineral Insulated Power Cable Fire Resistant

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO9001/ISO14001/OHSAS18001/CCC/CE
Minimum Order Quantity: 1000m
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability: 10 kilometer/ day
Model: BBTRZ,BTTZ,BTLY,RTTZ,YTTW Type: Low Voltage
Conductor: High Purity Copper Insulation: Mgo
Sheath: LSZH Color: Red, Orange
Application: Construction,Industrial Feature: Fire Resistance
High Light:

3x1.5mm2 Mineral Insulated Power Cable

,

35mm 5 core insulated electrical cable

,

3x1.5mm2 5 Core electrical Cable

Fire Resistant Copper Mineral Insulated Power Cable LSZH Sheathed Multi Core electrical Cable

1. Constructure

Conductor Conductor + insulation.The main conductor material is mostly copper, composed of copper wire, insulation is PVC
Mineral insulation magnesium oxide
Filler and layer mineral filler ; color separation layer and mineral fire retardant layer
Retardant glass flame retardant
Sheath LSZH
Standard IEC 60702-1: 2002; IEC 60702-2: 2002
GB/T 13033.1-2007;GB/T 13033.2-2007
Working temperature Protocol C Resistance to fire alone 950 °C for 3 h
Protocol W Resistance to fire with water 650 °C for 15 min
Protocol Z Resistance to fire with mechanical shock 950 °C for 15 min
Package The cables will be packaged in paper/wooden reels /containers or pallet according to customer's requirement.



2. Technical parameters

Nominal cross-section

(mm2)

Conductor diameter

(mm)

Insulation thickness

(mm)

Sheath

thickness

(mm)

O.D.

(mm)

Current ratings in air

(A)

Current ratings underground

(A)

Reference weight

(kg/km)

3x1.5 1.37 0.7 1.8 20.5 17.6 25.3 414.5
3x2.5 1.76 0.7 1.8 21.3 30.8 42.9 471.3
3x4 2.23 0.7 1.8 22.5 40.7 56.1 549.6
3x6 2.74 0.7 1.8 23.5 51.7 70.4 641.6
3x10 4.0 0.7 1.8 26.1 71.5 94.6 846.3
3x16 5.0 0.7 1.8 28.5 92.4 121.0 1083.5
3x25 6.0 0.9 1.8 31.3 121.0 154.0 1459.5
3x35 7.0 0.9 1.8 33.7 148.5 187.0 1810.3
3x50 8.20 1.1 1.8 36.8 187.0 225.5 2285.1
3x70 9.90 1.1 1.9 41.0 236.5 275.0 3095.0
3x95 11.6 1.1 2.0 44.5 291.5 330.0 3973.8



3. Features



4. Application

Mainly used for indoor, cable conducts and industrial plants or switching stations, underground installation. It can be used for distribution boards and panels, or equipments need more strands. For export to European countries, and electro-mechanical switching devices can be used as an alternative line of European-made equipments.

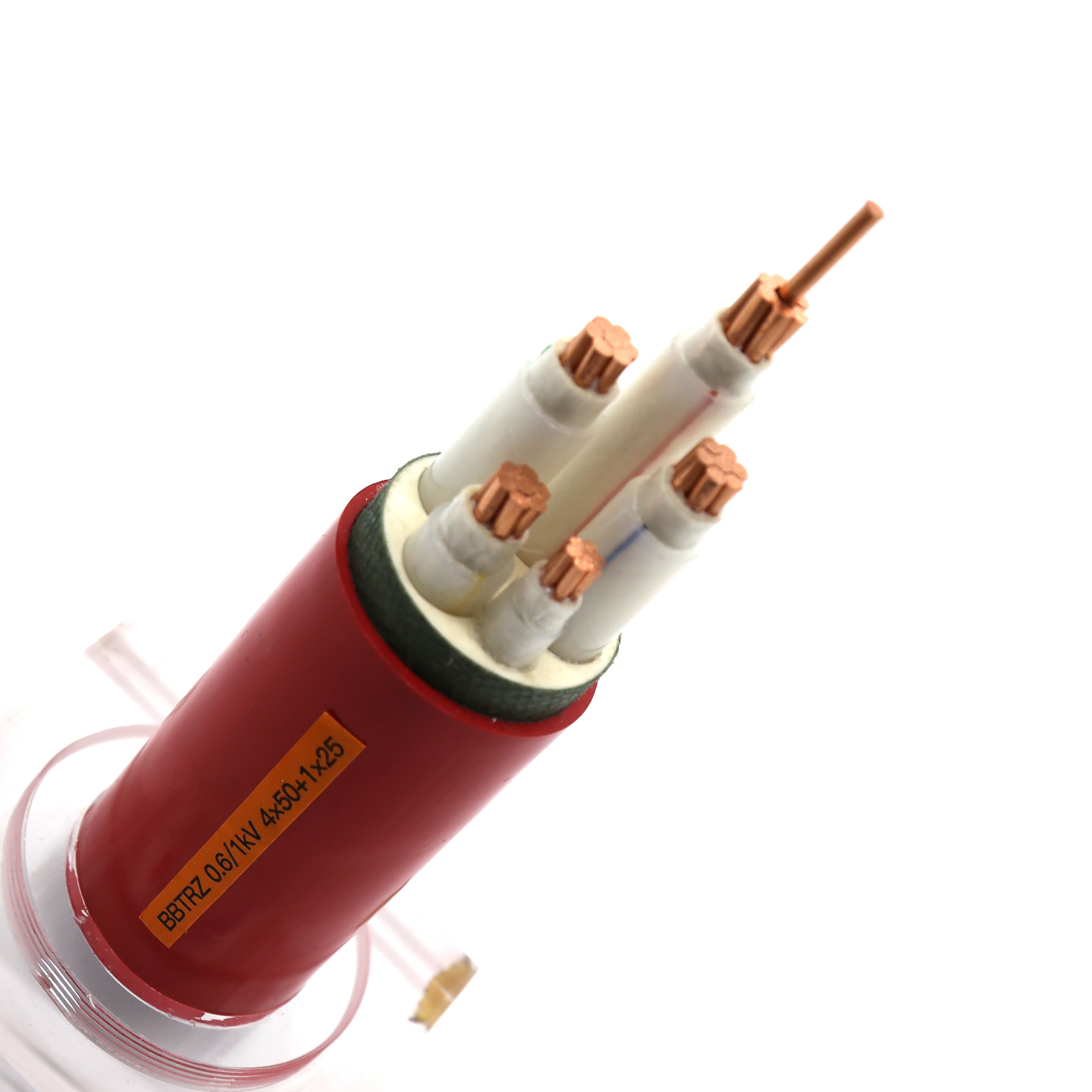

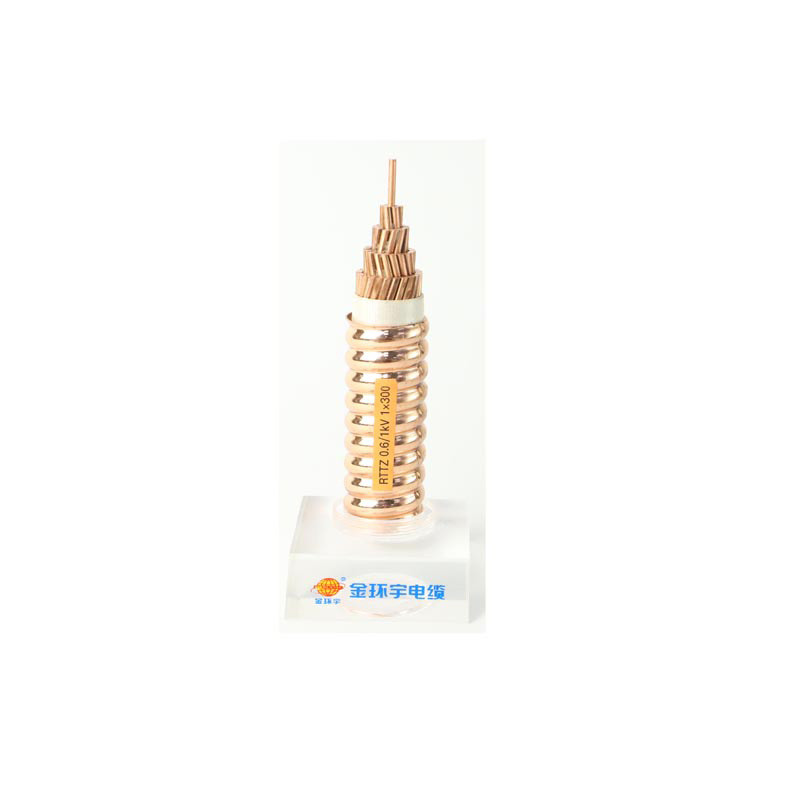

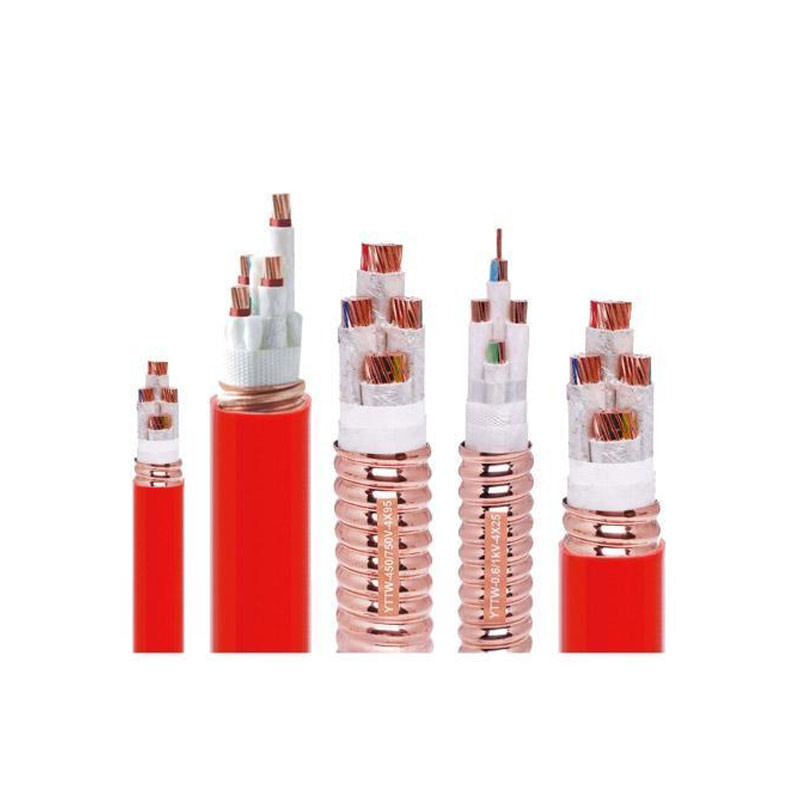

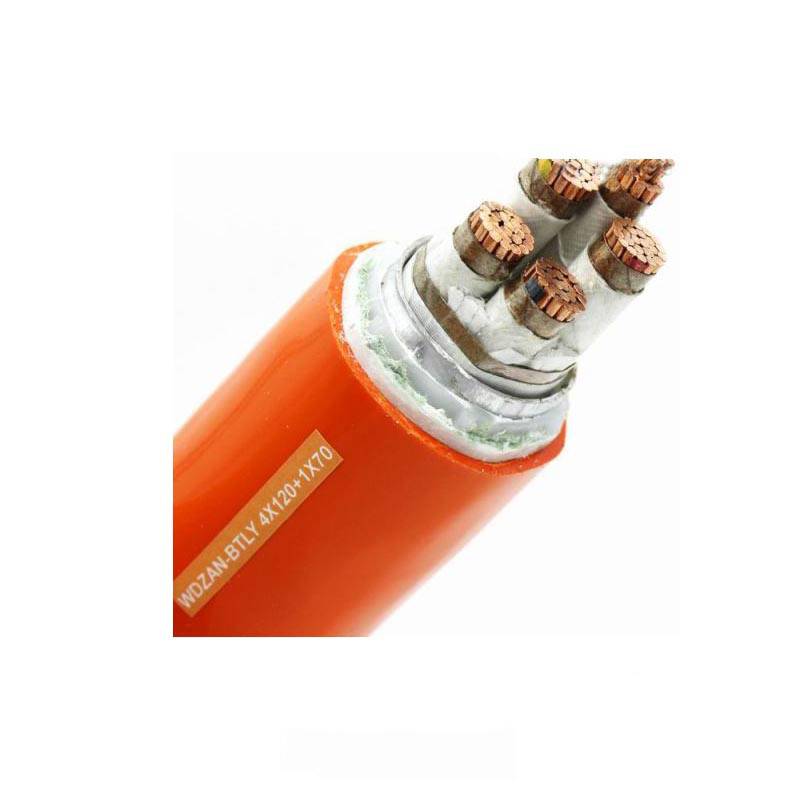

5. Product Image







35mm 5 Core 3x1.5mm2 Mineral Insulated Power Cable Fire Resistant 0



                          Product            Package

35mm 5 Core 3x1.5mm2 Mineral Insulated Power Cable Fire Resistant 1

6. Product standard

GB/T 34926, GB/T 13033, IEC 62702, IEC 60331, BS 6387, BS 6207.



7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
