| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE, CB |
| Minimum Order Quantity: | 500 m |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 20 km / day |
| Rated Voltage: | 0.6 / 1 KV | Conductor: | Bare Copper |
|---|---|---|---|
| No. Of Cores: | Multi Cores | Insulation: | PVC |
| Armoured Type: | Unarmoured | Sheath: | PVC Compound |
| High Light: | 16mm2 pvc insulated sheathed cable,0.7mm pvc insulated cable,0.7mm 3 Core PVC Cable |
||

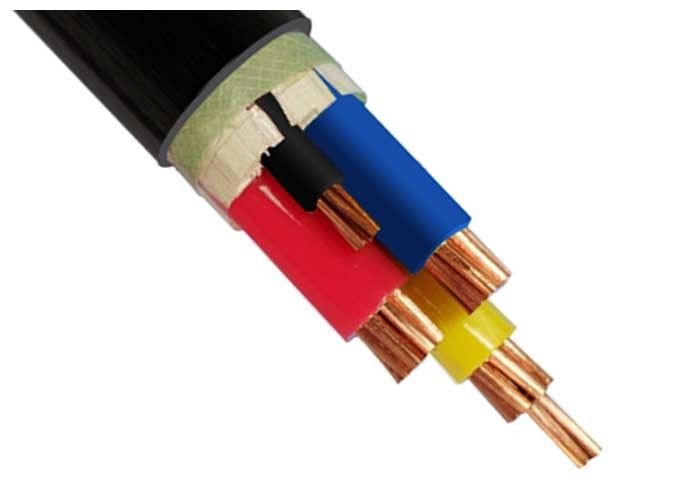

3*16 sq.mm PVC Multi-core cable to IEC 60502-1 Cu-conductor, PVC Insulated and sheathed
0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)
Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.
|
Quick details ------------------------------------------------------- – Nominal cross section:3X16 mm2 – Overall diameter Ø approx:17.5mm – Net weight approx: 638 kg/km – Conductor DC resistant at 20°C:1.15Ω/km
Dimensional characteristics ------------------------------------------------------- – Nominal cross-section: 16 mm2 – No of Conductors: single 3 Core – Insulation thickness: 0.7mm – sheath thickness nominal value:1.8 mm – Max overall diameter Ø: 17.5 mm – Approximate weight:638kg/km
Usage characteristics ------------------------------------------------------- – Maximum operating temperature: 90 °C – Short circuit temperature: +250°C (short circuit duration max. 5 s) – during installation up to -20°C – Temperature range: - 20 to + 90 °C – Minimum bending radius:15 x cable Ø
Construction characteristics ------------------------------------------------------- – For smaller sizes, a solid round conductor, Class 1 3. Filler: PP filler
------------------------------------------------------- For prompt quotation / supplies please make sure your inquiries and your orders are 1 - International or Special Standard. (Alternatively, the precise usage of the cable.) |
Electrical characteristics ------------------------------------------------------- –Rated voltage Uo/U (Um): 600 / 1000 V –Maximum current rating air 30°C:85 A –Maximum current rating buried 20°C: 107A –Maximum DC resistance, conductor 20°C:1.15Ω / km –Test voltage: 4000 V |
|
Our production in numbers
● 200 Sets Of Testing Equipment, 100 Testing Items, 8 workshop ● 40 wire drawing machines,10 bunching machines, 28 Extruder system, 42 stranding machines,10 Braiding machines |
|
|
Manufacturing Plant
● 2 Manufacturing plant ● 350 Will-trained employees |
|
|
Our products at a glance
– Medium voltage power cable – 0.6/1 kV Low volate power cable – Copper building wire up to 750 Volts – Ethernet Lan cable cat.5e, cat6, cat.6A cat.7 – Control cable – Fibre optical cable – Coxial cable |
|
|
Note: when required for a particular application, other colors are available. RECOMMENDED ORDERING PARAMETERS |
|
|
Standards ------------------------------------------------------- International: IEC 60502-1 |
 |
|
|
|
|||
| A1 – Thermally insolated wall (Single-core) | A2 – Thermally insolated wall (multi-core) | B1 – Apparent electroduct (Single-core) | B2 – Apparent electroduct (multi-core) | |||
|
|
|
|
|||
| B1 – Electroduct in brickwork (Single-core) | B1 – Electroduct in brickwork (multi-core) | C – On the wall | C – On the ceiling | |||
|
|
|
|
|||
| C – Non-perforated tray | F – Perforated tray (Single-core) | F – Perforated tray (multi-core) | F –Suspended (Single-core) | |||
|
|
|
|
|||
| E – Suspended (multi-core) | B2 – Construction space | B2 – Construction space | B1 – Electroduct (Single-core) | |||
|
|
|
|
|||
| B2 – Electroduct (Multi-core) | B2 – Closed raceway embedded in floor (multi-core) | B2 – Closed raceway embedded in floor (multi-core) | B1 – Ventilated raceway embedded in floor | |||
|
|
|||||
| C – Embedded in the brickwork | D – Buried in additional mechanical protection | |||||
Cable Drum Data
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
|
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
WARRANTY
-----------------------------------------------------------------------------------------------------------
For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
