| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Certification: | ISO CCC UL CE SAA SASO | Usage: | Industrial,etc |
|---|---|---|---|
| Feature: | Flame-Retardant | Armour: | Armour Or Unarmored |
| Sheath: | LSOH,pvc | Standard: | GB12706 |
| High Light: | 400mm2 XLPE Power Cables,1KV XLPE Power Cables,1KV xlpe insulated cable |
||

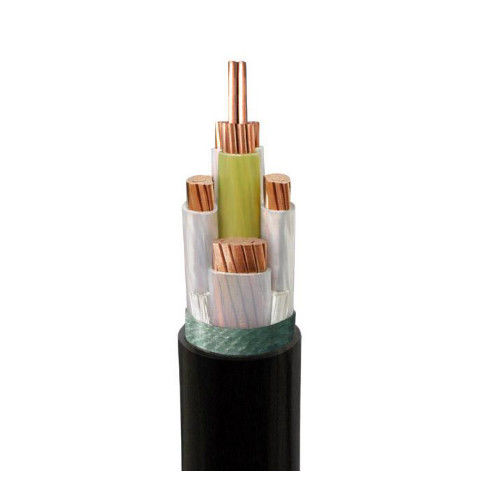

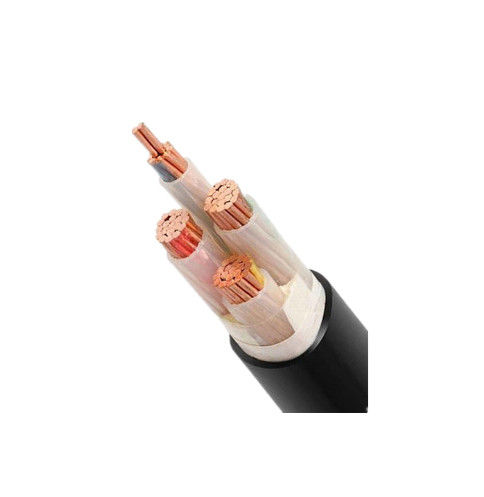

0.6/1KV Aluminum Conductor 240mm2 300mm2 400mm2 XLPE Power Cables
0.6/1KV XLPE insulated PVC sheathed steel-tape armoured power cable
Reference Norm:IEC 60502-1-2004.
0.6/1 kV XLPE Insulated power cable are used For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for building and industrial plants where not subject to mechanical damage. XLPE Insulated cable Suitable for glanding.
Recommended applications of YJV22(Cu-conductor XLPE insulated PVC sheathed, steel tape armoured pwer cable): for use in laying indoors, in tunnels, in ducts or sirect buying in arth, could be installed moisture environment and environment with high ground water level, able to bear external mechanical forces.
INSTALLATION CONDITIONS : Industrial use , Open air Buried ,In conduit , Damp environment ,Rodent proof .
Nominal cross-section: 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 available
Quality control :
our raw materials are from qualified supplies who had registerd in China Quality Certification Center. Our IQC system requires Self-Test Reports of each incoming lot and Timed Inspection Reports from a qualified 3rd part Inspection Party. In the meantime, we will strictly follow GB3953 and GB/T8815-2008 standard for both copper and PVC material during the incoming material inspection processes.
We have multi instruments to inspect our product,include vernier caliper, electronic scale, multimeter, bridge, projector, High voltage sparks tester, insulation resistance tester, cable trimming machine, tensile testing machine, high-voltage testing platform...
We have 4 testing programs to guarantee our quality during production: Self-inspection(Operators of each process will do self-inspection during theor work); Mutual-Inspection(Operator in next working process will do inpection for previous processes); Perform In-process quality audit(Inspectors from quality department will do spot inspection during production); Perform special inspection(inspectors from quality department will do special inspection for key processes)
0.6KV to 1KV Copper Aluminum conductor Unarmoured & Armoured XLPE Electrical Cable
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×1.5 | 0.7 | 1.8 | 10.1 | 132 | 21 | 28 | 12.1 |
| 3×2.5 | 0.7 | 1.8 | 11.0 | 171 | 28 | 37 | 7.41 |
| 3×4.0 | 0.7 | 1.8 | 12.0 | 225 | 37 | 48 | 4.61 |
| 3×6.0 | 0.7 | 1.8 | 13.1 | 296 | 47 | 61 | 3.08 |
| 3×10 | 0.7 | 1.8 | 15.3 | 440 | 64 | 82 | 1.83 |
| 3×16 | 0.7 | 1.8 | 17.5 | 638 | 85 | 107 | 1.15 |
| 3×25 | 0.9 | 1.8 | 21.0 | 954 | 115 | 138 | 0.73 |
| 3×35 | 0.9 | 1.8 | 23.1 | 1266 | 140 | 165 | 0.52 |
| 3×50 | 1.0 | 1.8 | 23.4 | 1614 | 168 | 198 | 0.39 |
| 3×70 | 1.1 | 1.9 | 27.4 | 2264 | 213 | 242 | 0.27 |
| 3×95 | 1.1 | 2.0 | 30.6 | 2975 | 263 | 290 | 0.19 |
| 3×120 | 1.2 | 2.1 | 34.0 | 3776 | 307 | 330 | 0.15 |
| 3×150 | 1.4 | 2.3 | 38.6 | 4682 | 357 | 371 | 0.12 |
| 3×185 | 1.6 | 2.4 | 43.3 | 5802 | 415 | 418 | 0.10 |
| 3×240 | 1.7 | 2.6 | 48.1 | 7437 | 498 | 485 | 0.08 |
| 3×300 | 1.8 | 2.8 | 52.2 | 9313 | 575 | 548 | 0.06 |
0.6KV to 1KV Copper Aluminum conductor Unarmoured & Armoured XLPE Electrical Cable
