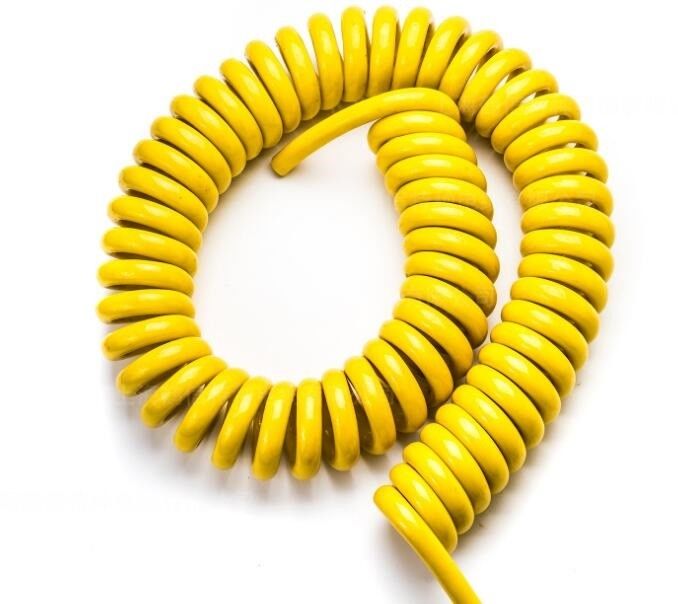

600V Spiral Power Cable

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: UL,CUL, CE,ROHS, REACH
Minimum Order Quantity: 6.1KM
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Product Name: Spiral Cable ,UL20940 , Shielded Conductor: Strand Tinned Or Bare Copper.
Core Number: 2 Cores And Above Standard: STYLE PAGE 20940 FOR UL758 ,UL1581, UL2556,IE60228 CL5
Insulation Material: SRPVC,PE,PP, TPEE Screened: Construction With Cu-screening, Tinned,approx. 80%
Sheath Material: PUR Application: Machine Construction Electrical Tools Building Industry ,Handling Equipment, Entertainment Equipment, Medical Devices, Measurement Instruments, Rolling Doors
Rated Voltage: 600 OR 1000V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

600V 7 core coiled cable

,

UL20940 spiral electrical wire

,

600V spiral power cable

Spiral cable with outer PUR sheath ,shielded, UL&cUL Certificated, 80℃ 600V OR 1000V



Construction

Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Screened:construction with Cu-screening, tinned,approx. 80%

Jacket: PUR



Standards:International: STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:600 V OR 1000V
Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 3.5kV/1min



Properties

High restoring forces
Very high flexibility
flame-retardant

Low temperature



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
