| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | RoHS/CE/CCC/CB/UL |
| Minimum Order Quantity: | 30 rolls |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 100000m/day |
| Product Name: | YZW Rubber Eletric Cable | Conductor: | 100% Copper |
|---|---|---|---|
| Insulation: | Rubber | Application: | Electric Equipment And Tools |
| Rated Temperature: | 70°C | MOQ: | 5000M |
| High Light: | 50mm rubber electrical cable,750V 3 core copper cable,50mm mineral insulated copper cable |
||

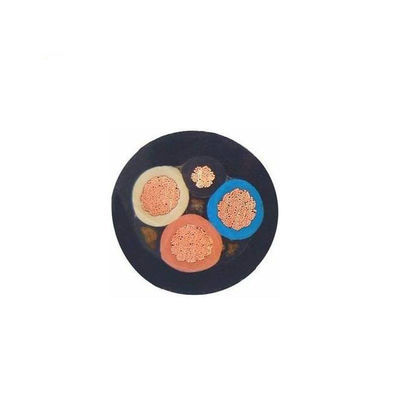

3 Core 1mm Rubber Flexible Copper Submersible Pump Electrical Cable
Production Description:
1. Production Application
The long-term allowable working temperature of the cable shall not exceed 70 ℃. YZW and YCW cables have weather resistance and certain oil resistance, which are suitable for outdoor use or in contact with oil pollution.Used to connect to electric welding machine and electrode holder cable.Used for various portable electric equipment which can bear large mechanical force effect.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, UL,RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Features
Voltage: 300/500v,450/750v
Conductor Material: Copper
Insulation Material: Ethylene propylene rubber
Jacket Material: Natural rubber/Chloroprene rubber
Conductor Type: Soft Conductor
Operating temperature: Cable conductor long-term maximum allowable working temperature of 65 ℃; short circuit, the cable conductor maximum temperature does not exceed 160 ℃, the duration of not more than 5S.
Environmental Temperature: The cable runs at a minimum ambient temperature of -10 ° C..
Laying temperature: Installation laying, the temperature should not be less than -10 ℃.
Bending radius: Cable bending radius of not more than 10D..
Color: green / yellow, light blue, black, brown,or according to customer requirements
Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti-electromagnetic wave due to the shielded structure..
4. Types
| Model | Rated Voltage (V) | Core No. | Nominal Cross Section(mm2) |
| YZ | 300/500 | 2,3,4,5,6 | 0.75~6 |
| YZW | 300/500 | 2,3,4,5,6 | 0.75~6 |
| YC | 450/750 | 1,2,3,4,5(4) | 1~16 |
| YCW | 450/750 | 1,2,3,4,5(4) | 1~16 |
5. Details
