Galvanized Steel 5 Core 25mm Armoured Power Cables Flexible XLPE Insulation

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO/RoHS/CE
Minimum Order Quantity: 200 meters
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability: 50000meters per week
Conductor: Class 5 Flexible Copper Conductor Insulation: XLPE
Bedding Layer: Halogen-free Thermoplastic Polyolefin Armour: Galvanized Steel Wires
Sheath: Halogen-free Thermoplastic Polyolefin Cross-sectional Diameter: 10/16/25mm2
High Light:

10mm armoured XLPE cable

,

25mm Armoured Power Cables

,

16mm 5 core armoured cable

Galvanized Steel Wires 10mm 16mm 25mm 5 Core Armoured XLPE Cable





APPLICATION:
The armoured, halogen-free properties of this cable make it ideal for installations in public areas, hazardous areas and installations in general where the cable is subject to risk of mechanical aggresion

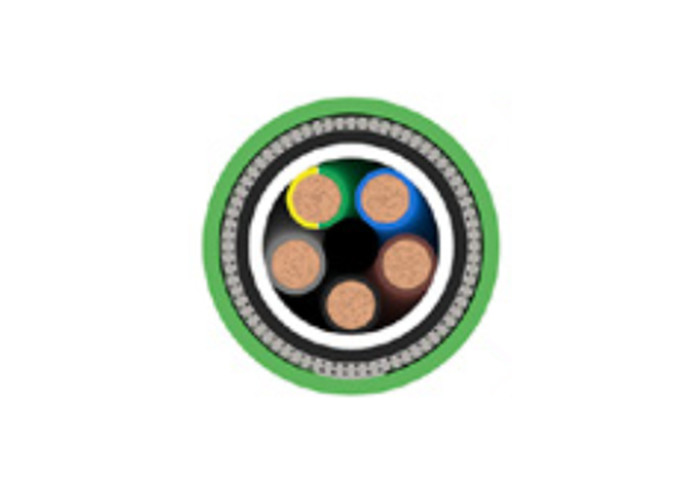

CONSTRUCTION:
Conductor
Class 5 flexible copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding Layer
Halogen-free thermoplastic polyolefin
Armour
Galvanized steel wires
Sheath
Halogen-free thermoplastic polyolefin
CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
-40oC to +90oC
Sheath Colour
Green

DIMENSIONS

NO. OF
CORES
NOMINAL CROSS
SECTIONAL AREA
mm²
DIAMETER UNDER
ARMOUR
mm
NOMINAL OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
MINIMUM BENDING
RADIUS
mm

2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5

5
5
5
5
5
5
5
5

1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4

6
10
16
25
35
50
70
95

7.6
8.4
9.5
10.6
12.5
14.5
17.8
20
19.4
23.2
25.8
29.2
32.4
35.6
41.1
8
8.9
10.1
11.3
13.3
15.5
19.1
21.7
23.3
27.5
30.6
34.4
38.5
42.5
48.7
8.9
9.9
11.2
12.5
14.8
17.3
21.3
24
25.7
30.4
33.9
38.6
42.8
47.1
54.2
9.8
10.9
12.4

13.9
16.5
19.2
23.8
26.8
31.3
37.1
41.6

12.5
13.3
14.4
15.5
18.1
20.1
24.2
26.4
26.1
29.9
33.6
37.4
40.9
45.4
51.4
13
13.9
15
16.2
18.9
21.1
25.6
28.2
30.9
35.2
38.8
42.9
48.3
52.7
59.4
14
15
16.3
18.3
20.6
23.7
27.8
30.8
33.4
38.6
42.3
48.4
53
57.7
65.2
14.9
16.7
18.2

19.7
22.8
25.6
30.6
33.7
39.3
45.6
51.5

290
335
400
480
720
920
1370
1680
1835
2420
3175
3920
4680
5900
7485
320
375
450
545
830
1075
1640
2050
2580
3365
4170
5070
6530
7735
9780
365
435
530
735
990
1405
1960
2480
3175
4235
5245
6900
8295
9850
12560
415
570
705

850
1265
1665
2340
2970
4180
5580
7390

125
135
145
155
185
205
245
265
265
300
340
375
410
455
515
130
140
150
165
190
215
255
285
310
355
390
430
485
530
595
140
150
165
185
210
240
280
310
335
390
425
485
530
580
655
150
170
185
200
230
260
310
340
395
460
515


CONDUCTORS

NOMINAL CROSS SECTIONAL AREA
mm²
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR
mm
MAXIMUM RESISTANCE OF CONDUCTOR
AT 20ºC
Plain Wires
ohms/km
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
0.26
0.26
0.31
0.31
0.41
0.41
0.41
0.41
0.41
0.51
0.51
0.51
0.51
0.51
0.51
13.3
7.98
4.95
3.3
1.91
1.21
0.78
0.554
0.386
0.272
0.206
0.161
0.129
0.106
0.080


ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm²
CURRENT CARRYING CAPACITY VOLTAGE DROP
V/A/km
2 Core Cables 3, 4 and 5 Core Cables Cos Ɵ 0.8 Cos Ɵ 1
In Air at 40°C
Amps
In Ground at 25°C
Amps
In Air at 40°C
Amps
In Ground at 25°C
Amps
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
24
33
45
57
79
105
123
154
188
244
296
348
404
464
552
27
36
46
58
77
100
128
154
183
224
265
302
342
383
442
20
26
36
46
65
87
110
137
167
214
259
301
353
391
468
23
30
38
48
64
82
106
129
152
187
222
253
286
320
370
23.61
14.2
8.839
5.919
3.458
2.218
1.458
1.057
0.759
0.556
0.438
0.358
0.302
0.262
0.215
29.374
17.62
10.93
7.288
4.218
2.672
1.723
1.224
0.852
0.601
0.455
0.356
0.285
0.234
0.177
