| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | RoHS/CE/CCC/CB/UL |
| Minimum Order Quantity: | 50 rolls |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 100000m/day |
| Product Name: | Eletrical Wire | Conductor: | Copper |
|---|---|---|---|
| Sheath: | Rubber PVC | Feature: | Oil Resistance |
| Rated Voltage: | 300/500V | MOQ: | 5000M |
| High Light: | 500V PVC insulated cable,6mm2 mineral insulated power cable,500V 3 Core Rubber Electrical Cable |
||

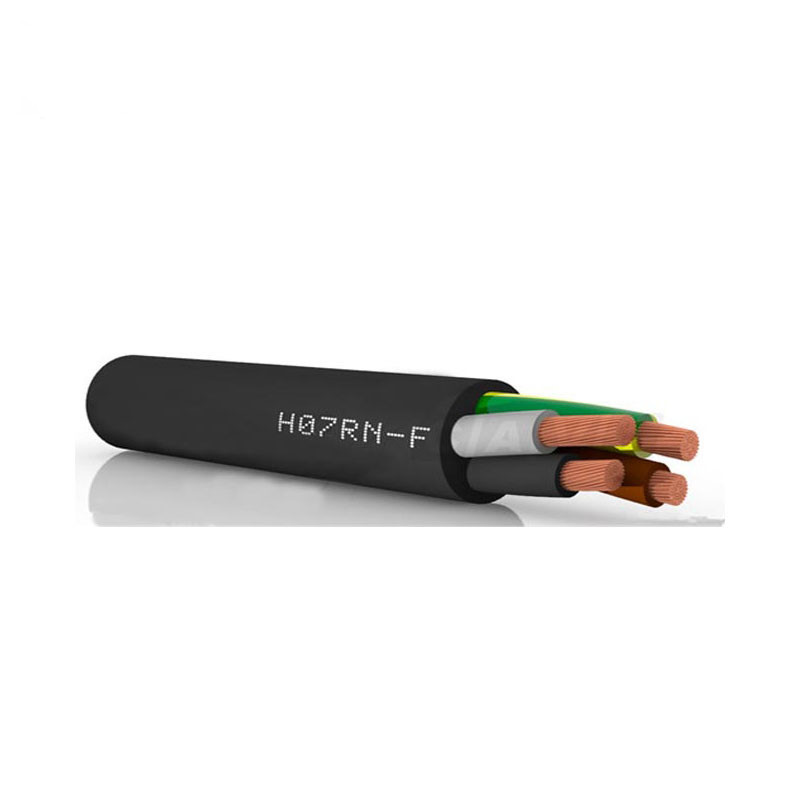

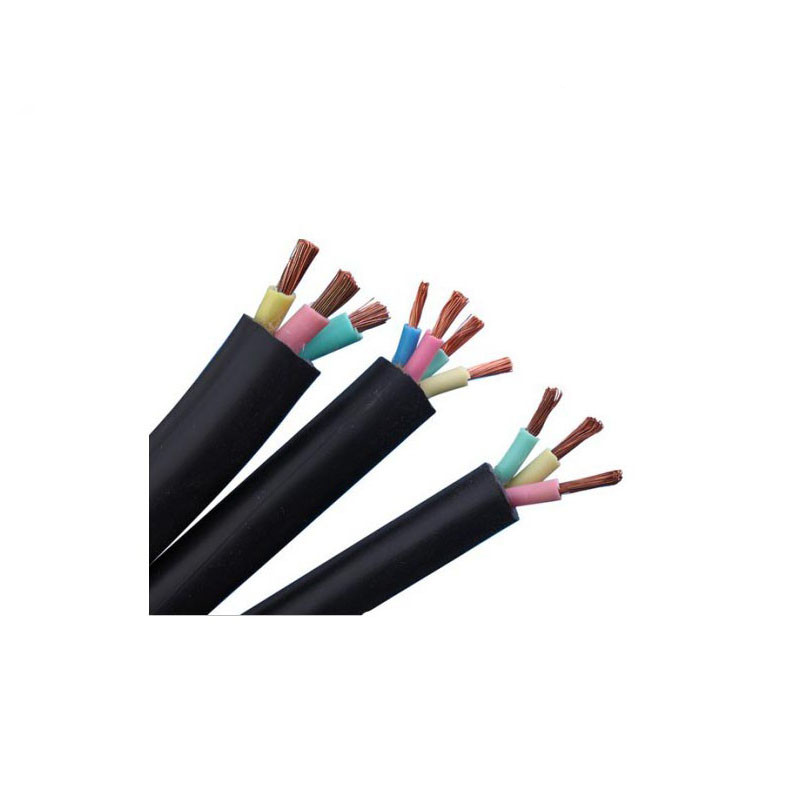

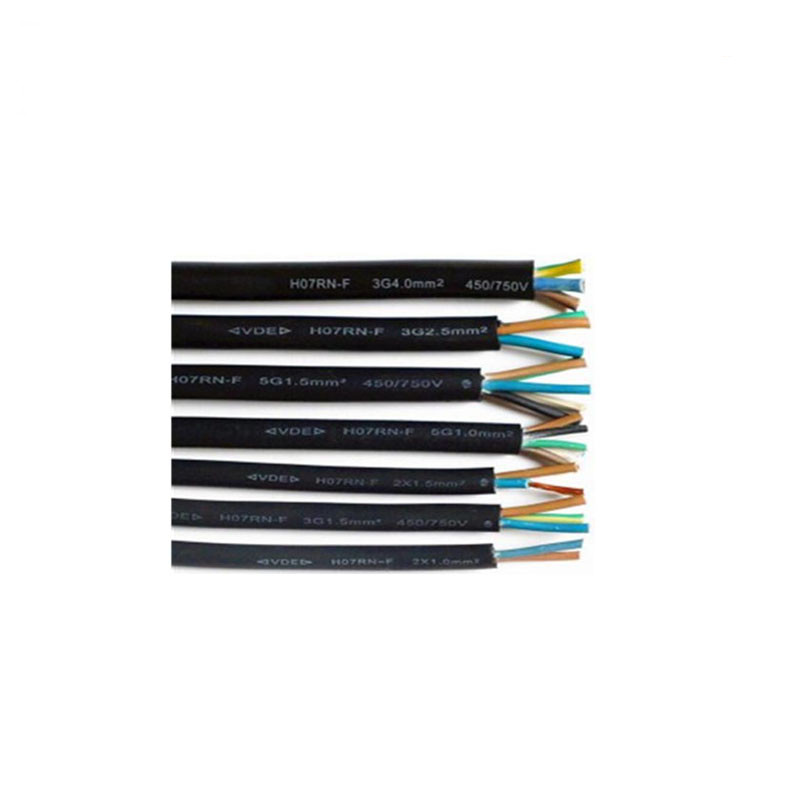

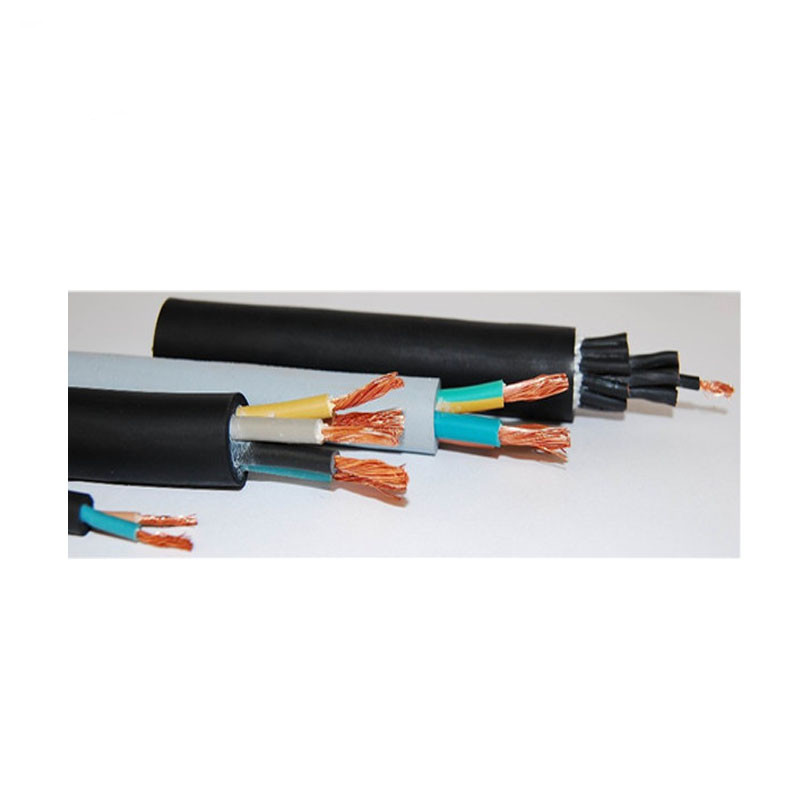

High flexible 3 core rubber electrical cable for machine tool
Production Description:
1. Production Application
Rubber cable (cabtyre cable) is a kind of flexible and movable cable with multiple strands of fine copper wire as conductor, rubber insulation and rubber sheathed.Generally speaking, it includes flexible rubber cable, welder cable, submersible motor cable, radio cable and photo light cable.The rubber sheathed flexible cables are mostly used as power cable for equipment in industry work such as boilers, heating plates, hand lamps, transportable motor etc.Applicable for the power connection of electric equipment , electric tool and various movable electric devices.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, UL,RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
3. Features
Voltage: 300/500v,450/750v
Conductor Material: Copper
Insulation Material: Ethylene propylene rubber
Jacket Material: Natural rubber/Chloroprene rubber
Operating temperature: Cable conductor long-term maximum allowable working temperature of 65 ℃; short circuit, the cable conductor maximum temperature does not exceed 160 ℃, the duration of not more than 5S.
Environmental Temperature: The cable runs at a minimum ambient temperature of -10 ° C..
Laying temperature: Installation laying, the temperature should not be less than -10 ℃.
Bending radius: Cable bending radius of not more than 10D..
Color: green / yellow, light blue, black, brown,or according to customer requirements
4. Types
| Model | Rated Voltage (V) | Core No. | Nominal Cross Section(mm2) |
| YZ | 300/500 | 2,3,4,5,6 | 0.75~6 |
| YZW | 300/500 | 2,3,4,5,6 | 0.75~6 |
| YC | 450/750 | 1,2,3,4,5(4) | 1~16 |
| YCW | 450/750 | 1,2,3,4,5(4) | 1~16 |
5. Details
