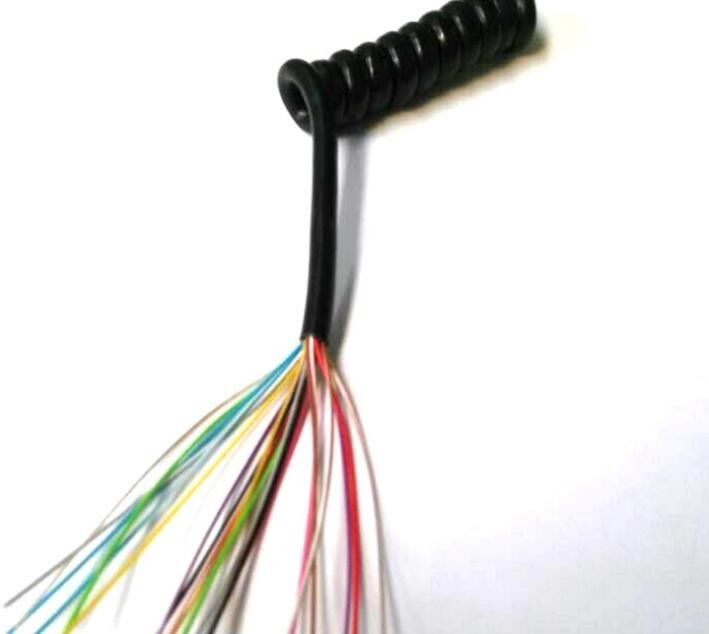

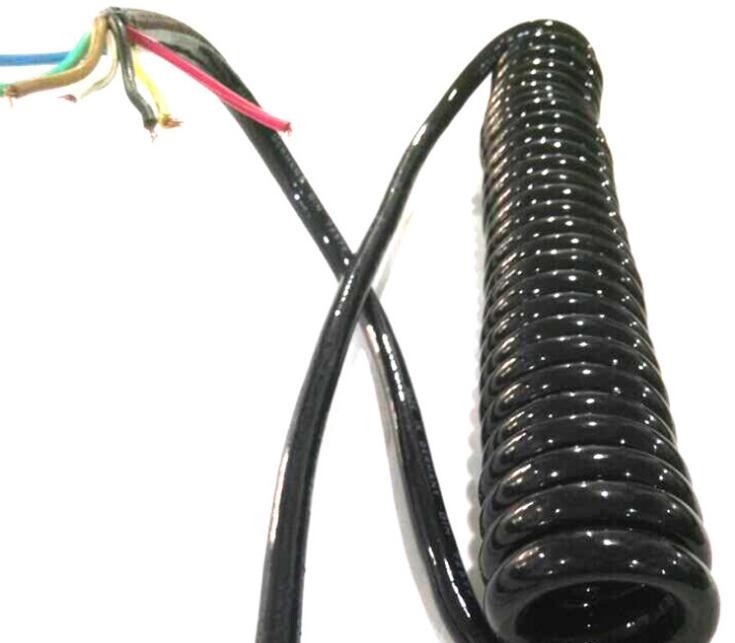

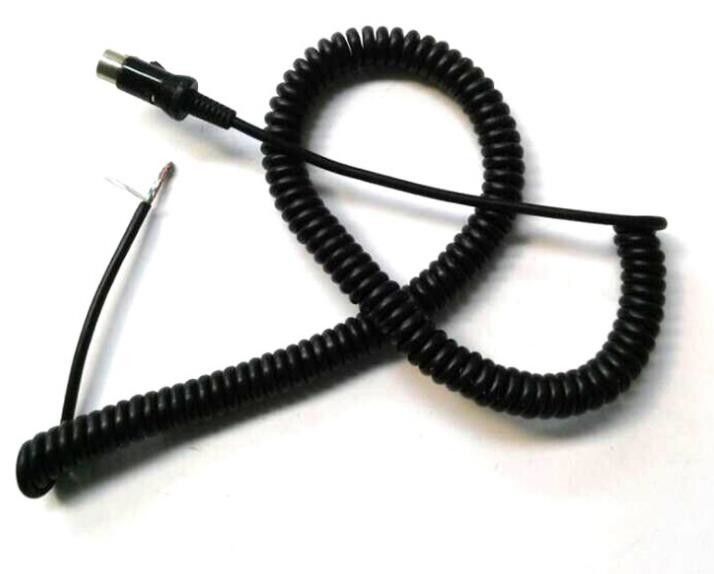

PP Insulated 300V 2 Core Coiled Cable , 300V Spiral Electrical Cable

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: UL,CUL, CE,ROHS, REACH
Minimum Order Quantity: 6.1KM
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Product Name: Spiral Cable ,UL20549 , Shielded Conductor: Strand Tinned Or Bare Copper.
Core Number: 2 Cores And Above Standard: STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5
Insulation Material: SRPVC,PE,PP, TPEE Screened: Construction With Cu-screening, Tinned,approx. 80%
Sheath Material: PUR Application: Machine Construction Electrical Tools Building Industry ,Handling Equipment, Entertainment Equipment, Medical Devices, Measurement Instruments, Rolling Doors
Rated Voltage: 300V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

PP Insulated coiled electrical wire


300V 2 core coiled cable


300V spiral electrical cable

Spiral cable with outer PUR sheath ,shielded, UL&cUL Certificated, 80℃ 300V



Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Screened:construction with Cu-screening, tinned,approx. 80%

Jacket: PUR


Standards:International: STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5

RoHS,REACH Compliant,


Technical data
Rated voltage:300 V
Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.0kV/1min



High restoring forces
Very high flexibility

Low temperature


Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø











Packing and Shipping


  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
