| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Conductor: | Solid Oxygen Free Copper | Insulation: | PE |
|---|---|---|---|
| Shield: | AL Foil | Braiding: | TC Braiding |
| Jacket Material: | PVC | Color: | Black Or Customized |
| Certification: | CE/RoHS | Application: | TV & CCTV |
| High Light: | RG6 RF Coaxial Cable,RG6 coaxial output cable,1.02mm R6 Coaxial Cable |
||
Black 75ohm RG6 RG11 RG59 CATV Flexible RF Coaxial Cable
Production Description:
1. Introduction of coaxial cable
RG stands for "radio guide." The numbers of the various versions of RG cable refer to the diameter (59 meaning .059, and 6 meaning .06, etc.). They are also called RF cables, which stands for "radio frequency".
Most non-industrial coax is now known as RG-6, but installers may use a thicker cable, like RG-11.
RG cables used in homes should be 75 ohm impedance.
Compression connectors
Screw-on connectors
Crimp-style connectors
2. Product Technical Parameter
| Model |
Conductor (No./mm) |
Speciality impedance |
Braid coverage (%) |
Nominal Attenuation | ||
| 100MHz | 400MHz | 400MHz | ||||
| RG-58 | 0.81 | 50±2 | 40%-95% | 15.1 | 30.8 | 50.2 |
| RG-6 | 1.02 | 75±2 | 40%-95% | 6.4 | 12 | 21.5 |
| RG-59 | 0.81 | 75±2 | 40%-95% | 9.3 | 18 | 27.8 |
| RG-11 | 1.63 | 75±2 | 60%/40% | 4.3 | 8.4 | 14.7 |
3. Application
Coaxial cable is used as a transmission line for radio frequency signals. Its applications include feedlines connecting radio transmitters and receivers to their antennas, computer network (e.g., Ethernet) connections, digital audio(S/PDIF), and distribution of cable television signals. One advantage of coaxial over other types of radio transmission line is that in an ideal coaxial cable the electromagnetic field carrying the signal exists only in the space between the inner and outer conductors. This allows coaxial cable runs to be installed next to metal objects such as gutters without the power losses that occur in other types of transmission lines. Coaxial cable also provides protection of the signal from external electromagnetic interference.

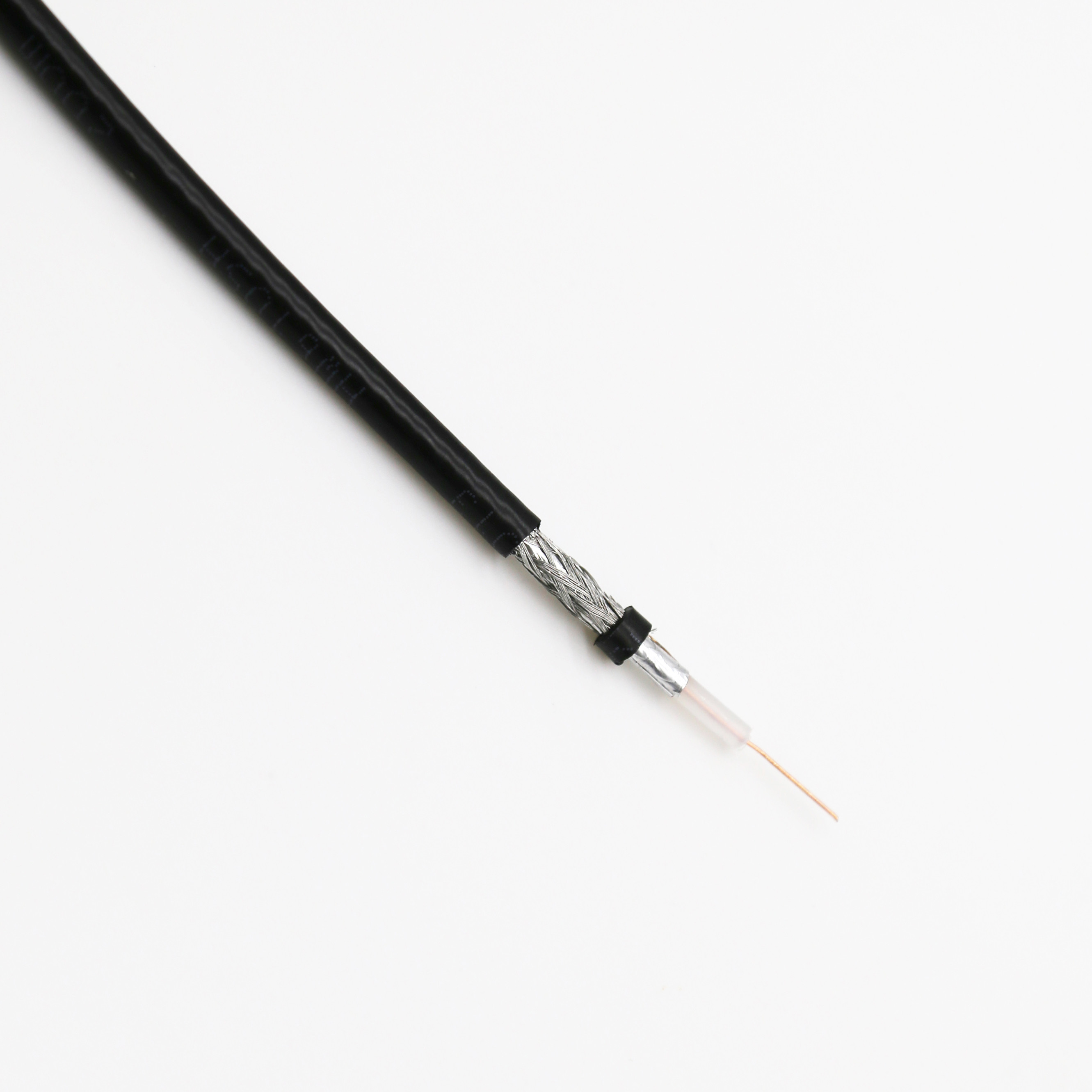

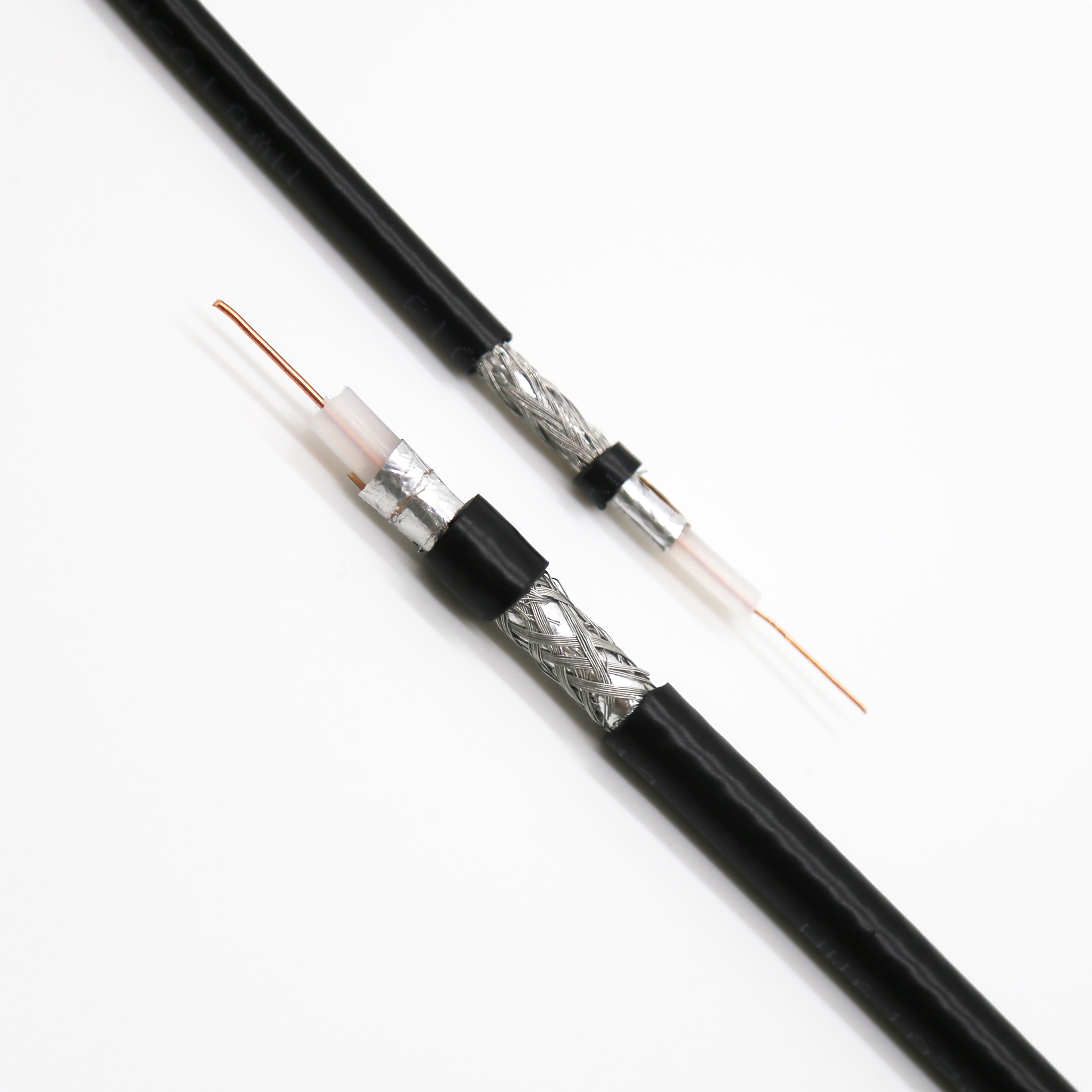

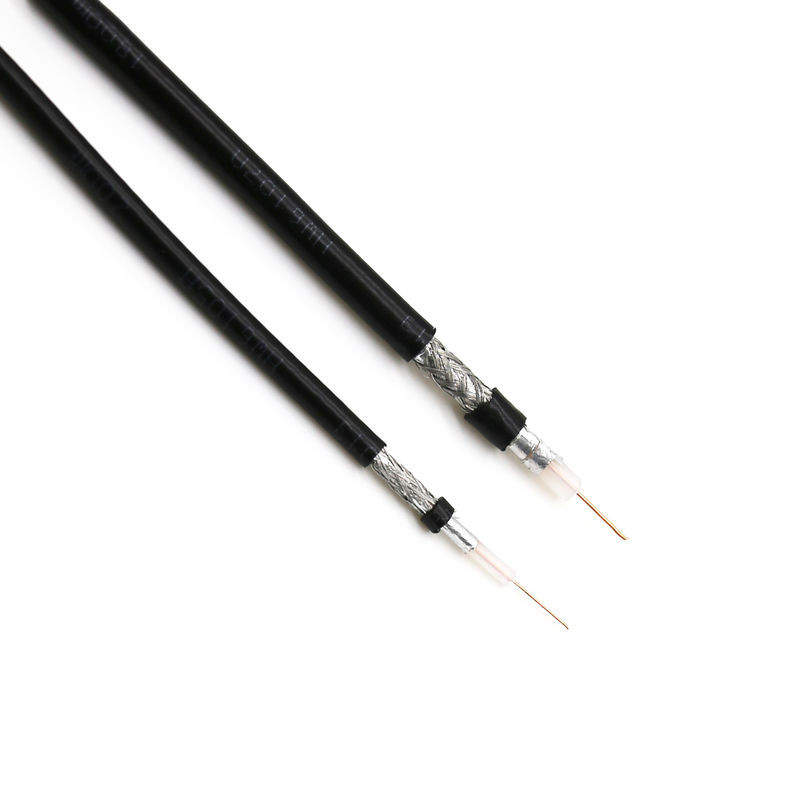

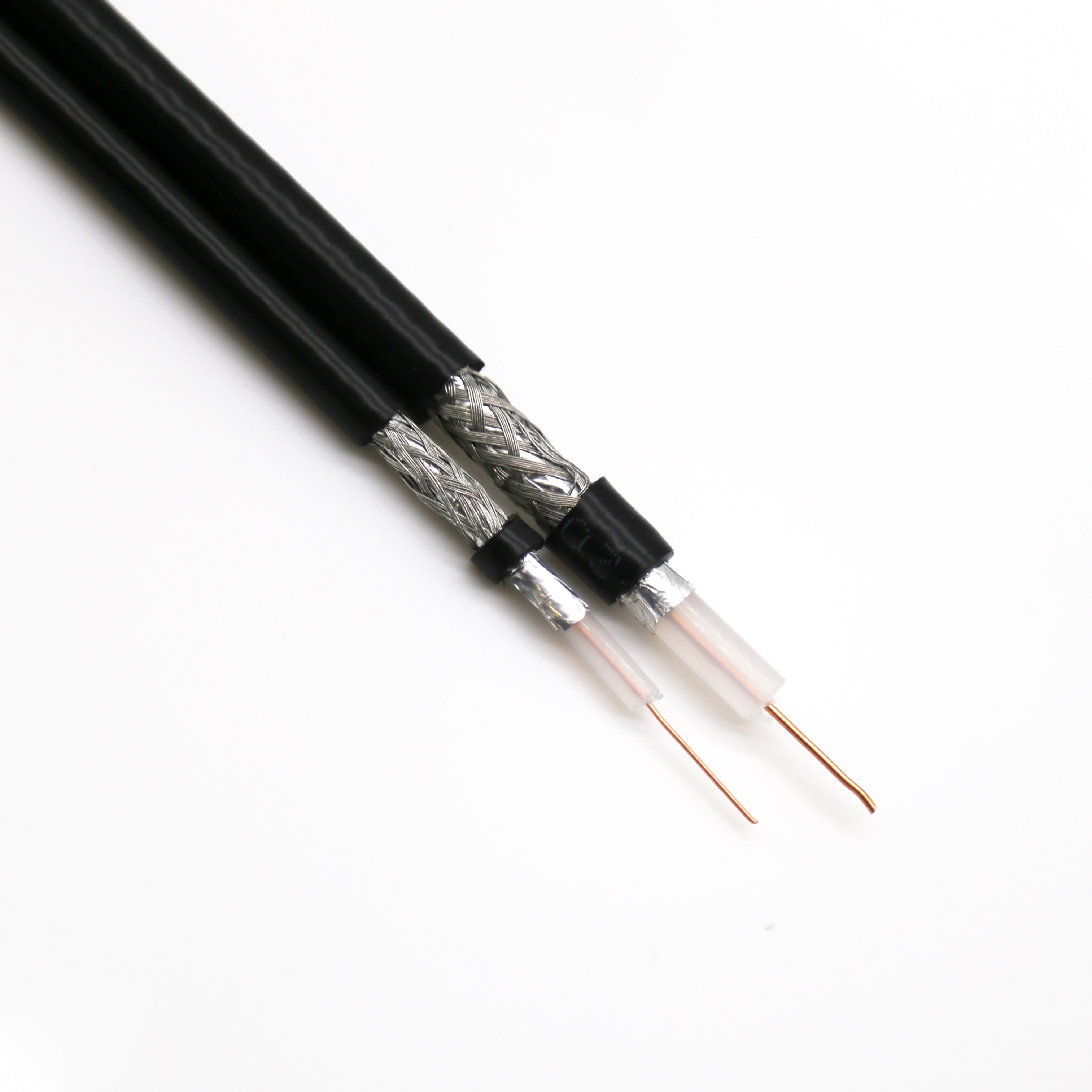

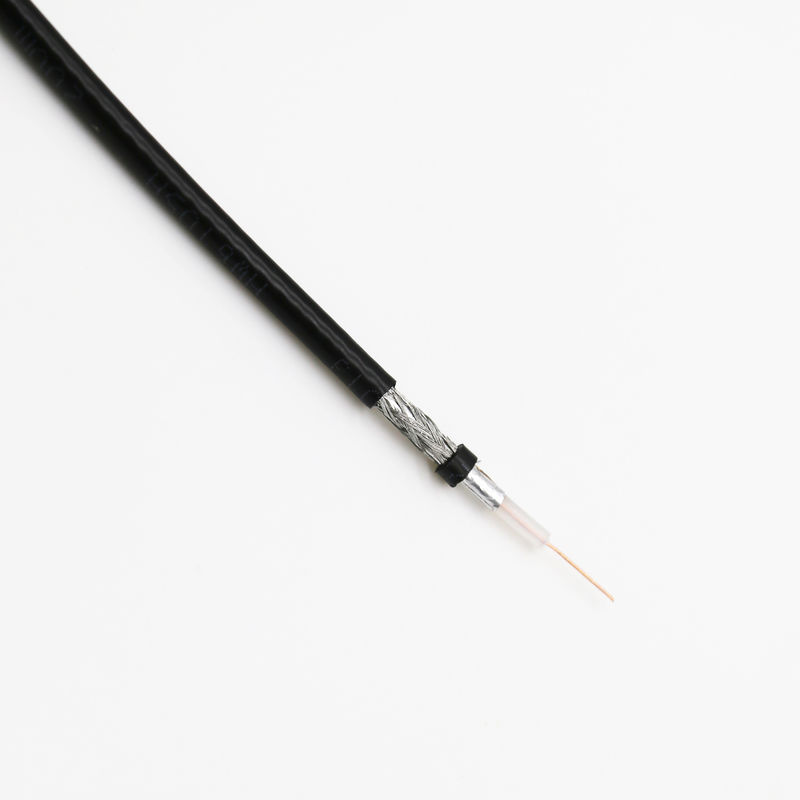

4. Product Image
