| Screen: | Semi Conductive Swellable Tape | Conductor: | Stranded Copper Conductor |
|---|---|---|---|
| Insulation: | XPLE | Matel Screen: | Copper Wire Screen |
| Tape: | Swellable Tape | Armoured: | Aluminum Tape |
| Outer Sheath: | PE | Installation Temp. Min: | -20°C |
| High Light: | XLPE Insulated armoured electrical cable,47kV Armoured Power Cables,47kV armoured xlpe cable |
||
XPLE Insulation Armoured Power Cables
N2XS(FL)2Y 26/45-47kV TS 10382 IEC 60840

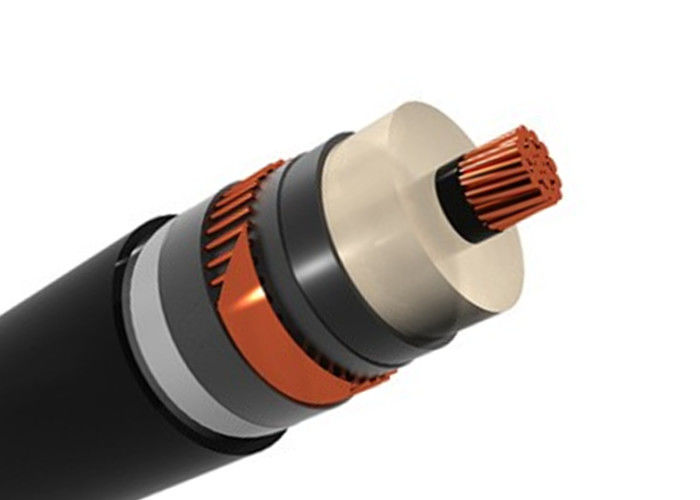

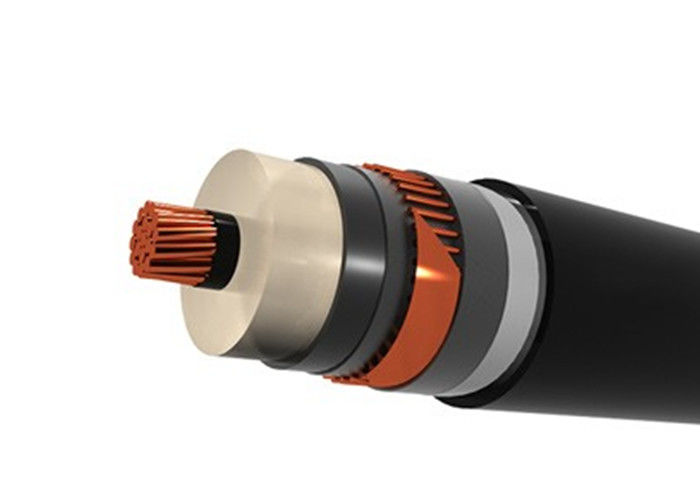

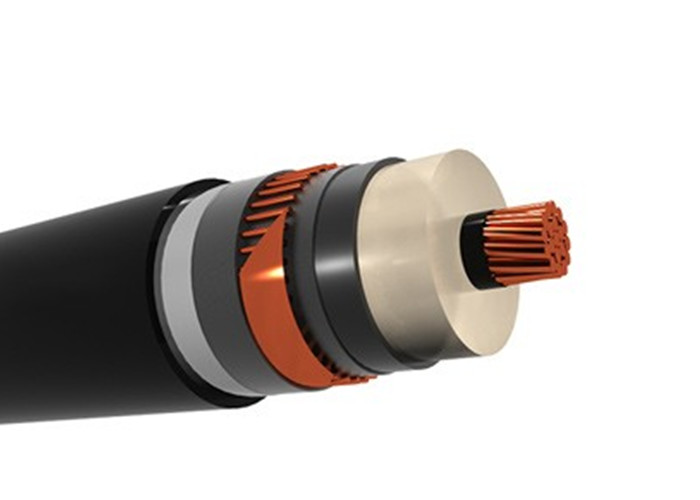

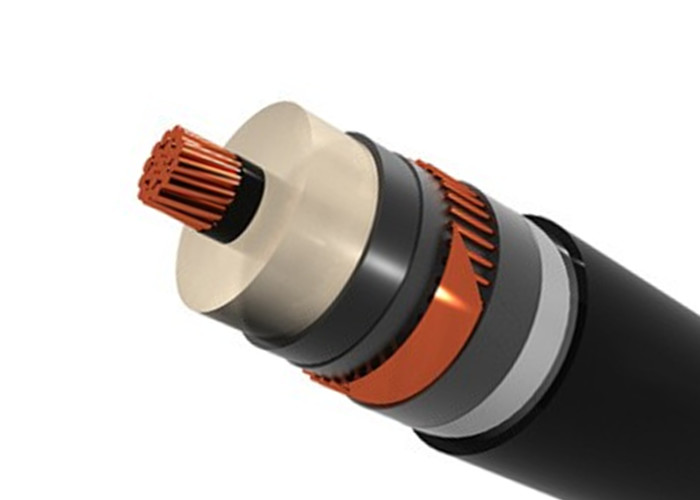

Structure
1. Stranded copper conductor
2. Inner semi conductive layer
3. XPLE insulation
4. Outer semi conductive layer
5. Semi conductive swellable tape
6. Copper wire screen
7. Swellable tape
8. Aluminum tape
9. PE outer sheath
| Technical Data | ||||||||
|
Permissible operating temp.: 90°C Max. short circuit temp.: 250°C (+≤ 5 sec.) Installation temp. min: -20°C
|
||||||||
| Applications | ||||||||
| These cables used in energy networks with sudden load changes laid in residential or industrial areas, underground or in ducts. If the cables gets water inside due to the mechanical damages swellable tapes prevent the water. | ||||||||
| Rated Cross Section |
Overall Diameter Of Cable |
Current Carrying Capacity |
Operating Inductance |
Operating Capacity |
Conductor DC Resistance at (20°C) |
Net Weight |
||
| mm2 | mm | Air 30°C | Ground 20°C | MH/Km | µF/km | Ohm/Km | Kg/Km | |
| 1x70/16 | 41,60 | 347 | 304 | 0,478 | 0,108 | 0,2680 | 1970 | |
| 1x95/16 | 43,40 | 420 | 360 | 0,453 | 0,119 | 0,1930 | 2280 | |
| 1x120/16 | 44,80 | 483 | 408 | 0,436 | 0,128 | 0,1530 | 2570 | |
| 1x150/25 | 46,20 | 540 | 445 | 0,422 | 0,137 | 0,1240 | 2970 | |
| 1x185/25 | 48,00 | 614 | 498 | 0,406 | 0,148 | 0,0991 | 3360 | |
| 1x240/25 | 50,30 | 718 | 569 | 0,389 | 0,162 | 0,0754 | 3970 | |
| 1x300/25 | 52,60 | 813 | 633 | 0,374 | 0,176 | 0,0601 | 4600 | |
| 1x400/35 | 55,70 | 904 | 686 | 0,358 | 0,195 | 0,0470 | 5630 | |
