| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Conductor: | Class 2 Tinned Copper Conductor | Insulation: | Halogen-free Elastomer Compound EPR |
|---|---|---|---|
| Sheath: | HOFR (Heat And Oil Resistant And Flame Retardant), Halogenfree Elastomer Compound Type SW4 According To BS 7655 | Application: | Construction,Industrial,Underground |
| Armor: | Steel Tape Armoured,Steel Tape Or Steel Wire | Voltage: | 600V |
| High Light: | 16mm2 Armoured Power Cables,10mm2 Armoured Power Cables,1 Core 16mm2 armoured cable |
||

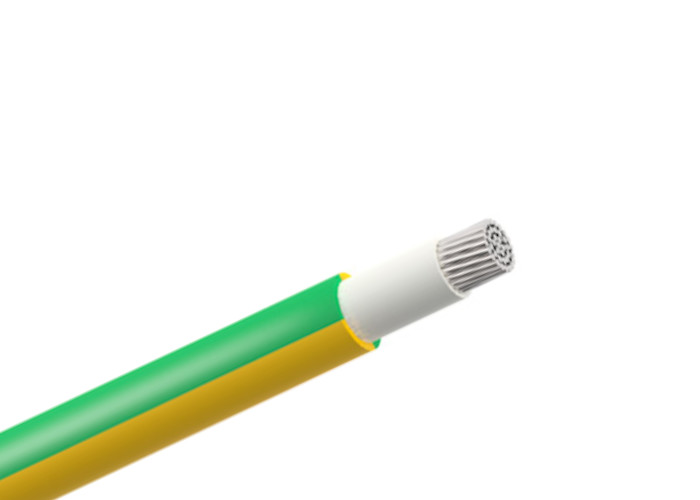

600V / 1000V 1 Core 10mm2 16mm2 Armoured Power Cables
APPLICATION:
Unarmoured earth cable for fixed installations in all areas including accommodation and open deck in ships and offshore units.
CONSTRUCTION:
Conductor
Class 2 tinned copper conductor according to
BS EN 60228 (previously BS 6360)
Insulation
Halogen-free elastomer compound EPR Type GP4 according to
BS 7655
Sheath
HOFR (Heat and Oil Resistant and Flame Retardant), halogenfree elastomer compound Type SW4 according to BS 7655
CHARACTERISTICS:
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
Fixed: -40°C to +90°C
Flexed: -15°C to +90°C
Minimum Bending Radius
Up to 10mm2 - Fixed: 3 x overall diameter
16mm2 to 25mm2 - Fixed: 4 x overall diameter
Above 25mm2 - Fixed: 6 x overall diameter
Sheath Colour
Green/Yellow
DIMENSIONS
| CORE NO. |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL THICKNESS OF SHEATH mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 |
1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 |
0.8 0.8 0.8 1 1 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2 2.2 2.4 2.6 2.8 |
1 1 1 1 1 1 1.1 1.2 1.2 1.3 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.2 |
4.8 5.1 5.6 6.5 7.1 8.1 9.5 11.4 12.6 14.3 16 18.6 20.3 22.4 24.9 28 30.9 35.3 39.3 |
34 40 54 78 101 144 216 328 429 551 753 1049 1274 1568 1949 2530 3134 4258 5337 |
CONDUCTORS
Class 2 Stranded Conductors for Single Core and Multi-Core Cables
| NOMINAL CROSS SECTIONAL AREA mm² |
MINIMUM NO. OF WIRES IN CONDUCTOR | MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC | |
| Circular | Annealed Copper Conductor | ||
| Cu | Metal-Coated Wires ohms/km |
||
| 1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 |
7 7 7 7 7 7 7 7 7 19 19 19 37 37 37 37 61 61 61 |
18.2 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 |
|
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity
| NOMINAL CROSS SECTIONAL AREA mm² |
SINGLE CORE Amps |
| 1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 |
18 23 30 40 52 72 96 127 157 196 242 293 339 389 444 522 601 719 827 |
DE-RATING FACTORS
| AMBIENT TEMPERATURE | 35ºC | 40ºC | 45ºC | 50ºC | 55ºC | 60ºC | 65ºC | 70ºC | 75ºC | 80ºC |
| DE-RATING FACTOR | 1.10 | 1.05 | 1.0 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
