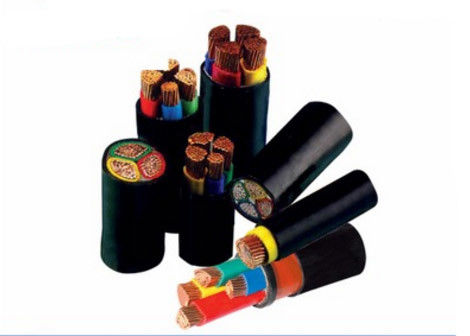

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE, CB
Minimum Order Quantity: 500 m
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability: 20 km / day
Rated Voltage: 0.6 / 1 KV Conductor: Bare Copper
No. Of Cores: 3 Cores Insulation: PVC
Armoured Type: Unarmoured Sheath: PVC Compound
High Light:

3X95mm2 copper pvc cable

,

0.6/1KV pvc sheathed insulated cable

,

3X95mm2 flexible pvc cable


0.6/1kV, PVC Insulated Cables according to IEC 60502-1 (unarmoured)





Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.





Quick details

-------------------------------------------------------

Nominal cross section:3X95mm2

Overall diameter Ø approx:30.6mm

Net weight approx: 2975 kg/km

Conductor DC resistant at 20°C:0.19Ω/km



Dimensional characteristics

-------------------------------------------------------

Nominal cross-section: 95 mm2

No of Conductors: single 3 Core

Insulation thickness: 1.1mm

sheath thickness nominal value:2.0 mm

Max overall diameter Ø: 30.6 mm

Approximate weight:2975 kg/km



Usage characteristics

-------------------------------------------------------

Maximum operating temperature: 90 °C

Short circuit temperature: +250°C (short circuit duration max. 5 s)

during installation up to -20°C

Temperature range: - 20 to + 90 °C

Minimum bending radius:15 x cable Ø





Construction characteristics

-------------------------------------------------------
1. Conductor
– Bare copper conductor, Class 2 to IEC 60228

–​ For smaller sizes, a solid round conductor, Class 1
2. Insulation: XLPE Compound

3. Filler: PP filler
4. Outer Sheath :PVC Compound
5. Sheath colour :Black



-------------------------------------------------------

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 - International or Special Standard. (Alternatively, the precise usage of the cable.)
2 - Rated voltage.
3 - Copper or Aluminium conductors.
4 - Size of each conductor.
5 - Insulation material : XLPE or others.
6 - Number and identification of conductors.
7 - Other requirements.
8 - Packing.
9 - Required delivery time.
10 - Required validity.

Electrical characteristics

-------------------------------------------------------

Rated voltage Uo/U (Um): 600 / 1000 V

Maximum current rating air 30°C:263 A

Maximum current rating buried 20°C: 290 A

Maximum DC resistance, conductor 20°C:0.19Ω / km

Test voltage: 4000 V

Our production in numbers

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 0

200 Sets Of Testing Equipment, 100 Testing Items, 8 workshop

40 wire drawing machines,10 bunching machines, 28 Extruder system, 42 stranding machines,10 Braiding machines

Manufacturing Plant

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 1
100,000 m2 Production area

2 Manufacturing plant
1 R&D Center

350 Will-trained employees

Our products at a glance



–​ Medium voltage power cable

–​ 0.6/1 kV Low volate power cable

–​ Copper building wire up to 750 Volts

–​ Ethernet Lan cable cat.5e, cat6, cat.6A cat.7

–​ Control cable

–​ Fibre optical cable

–​ Coxial cable

Note:

when required for a particular application, other colors are available.

RECOMMENDED ORDERING PARAMETERS

Standards

-------------------------------------------------------

International: IEC 60502-1
National:GB/ T 12706.1-2008





  Physical and Electrical Characteristics:









INSTALLATION METHOD DETAILS



Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 2   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 3   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 4   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 5
A1 – Thermally insolated wall (Single-core) A2 – Thermally insolated wall (multi-core) B1 – Apparent electroduct (Single-core) B2 – Apparent electroduct (multi-core)

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 6   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 7   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 8   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 9
B1 – Electroduct in brickwork (Single-core)   B1 – Electroduct in brickwork (multi-core)   C – On the wall    C – On the ceiling

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 10   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 11   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 12   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 13
C – Non-perforated tray   F – Perforated tray (Single-core)   F – Perforated tray (multi-core)   F –Suspended (Single-core)

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 14   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 15   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 16   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 17
E – Suspended (multi-core)   B2 – Construction space   B2 – Construction space   B1 – Electroduct (Single-core)

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 18   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 19   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 20   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 21
B2 – Electroduct (Multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B2 – Closed raceway embedded in floor (multi-core)   B1 – Ventilated raceway embedded in floor

Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 22   Underground Flexible 0.6/1KV 3X95mm2 Copper PVC Cable Waterproof 23
C – Embedded in the brickwork   D – Buried in additional mechanical protection



Cable Drum Data



CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Low Voltage Power Cable 0.6/1 kV 3+2 Core XLPE Insulated, PVC Sheathed, Unarmoured & Armoured to IEC 60502 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300



  WARRANTY

-----------------------------------------------------------------------------------------------------------

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.



Note:

-----------------------------------------------------------------------------------------------------------

  • Photographs are not to scale and do not represent detailed images of the respective products
  • Sale to business customers only
  • Information in this document is subject to change without notice
