| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Conductor: | Class 5 Flexible Copper Conductor | Insulation: | PVC |
|---|---|---|---|
| Sheath: | PVC | Voltage Rating: | 300/500V |
| Core: | 18 | NOMINAL CROSS SECTIONAL AREA: | 1.5mm2 |
| High Light: | 300V armoured electrical cable,RoHS 18 Core Armoured Power Cables,500V armoured xlpe cable |
||

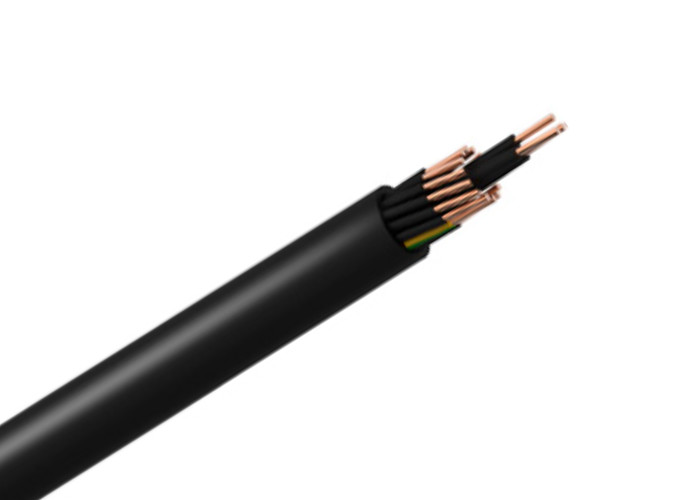

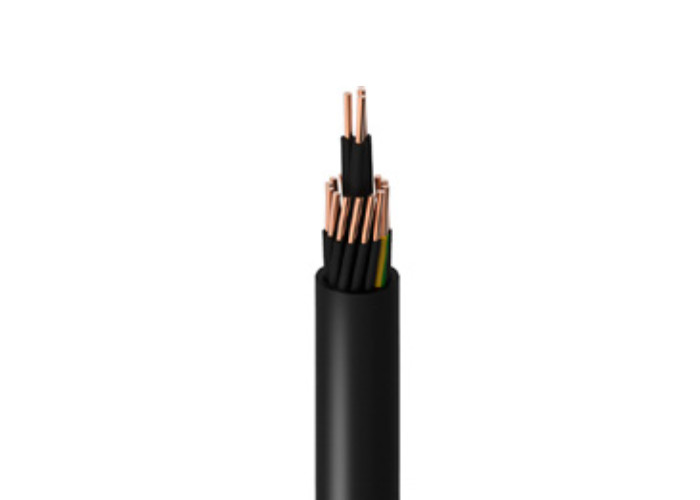

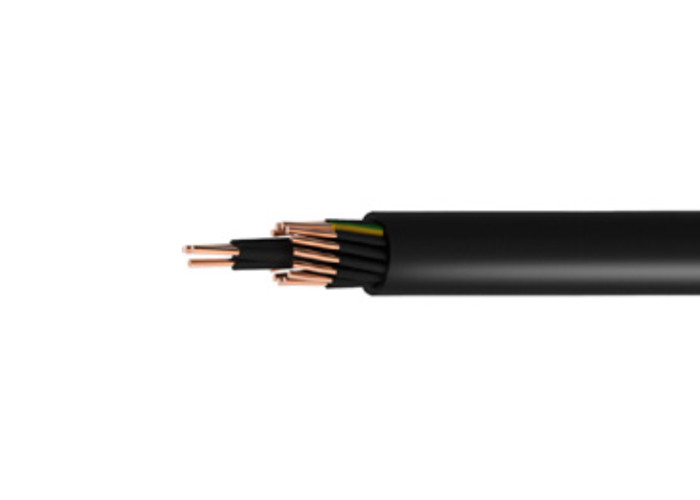

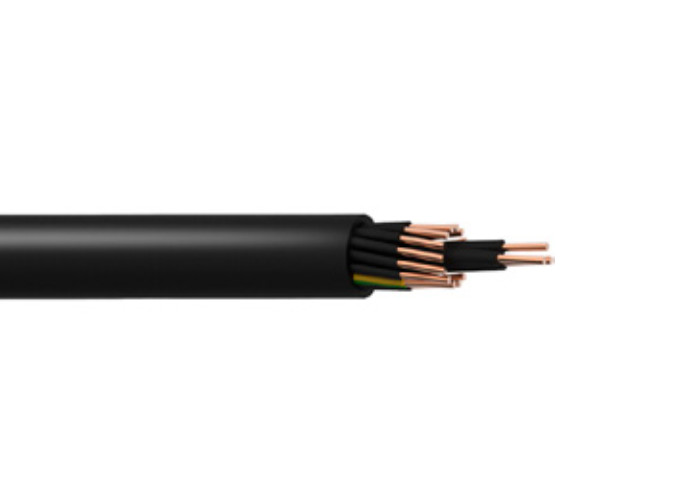

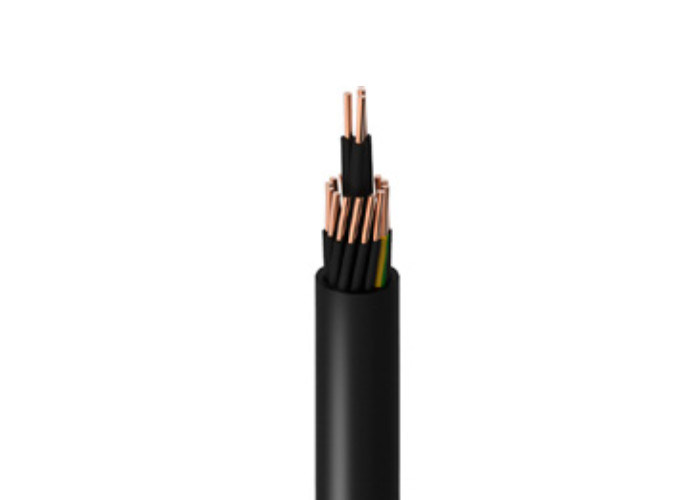

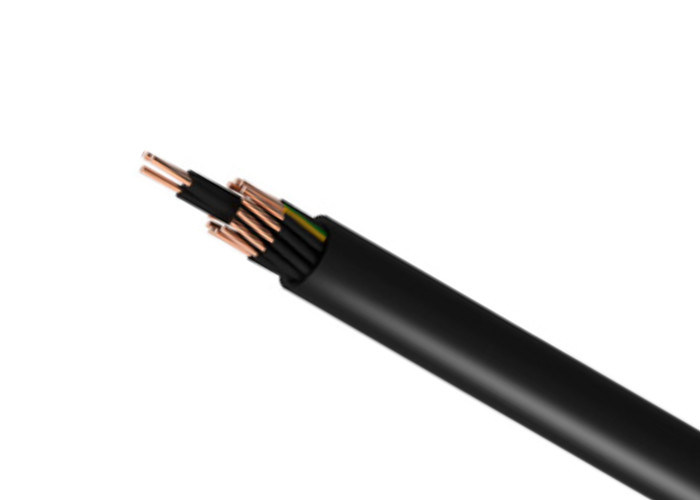

18 Core 1.5mm2 Flexible Copper Conductor Armoured Power Cables
APPLICATION
The cable is a highly flexible multicore cable for use in the connection of lighting technology and dimmer racks. The cable may be used in dry, damp and wet interiors under medium mechanical stress and for external use with UV protection. It is suitable for flexible and fixed applications.

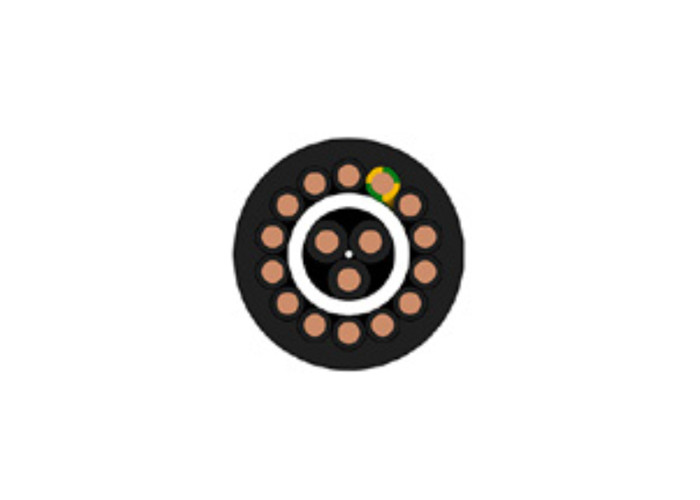

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride) Type TI1
Sheath
PVC (Polyvinyl Chloride) Type TM2
CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Test Voltage
3kV
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 15 x overall diameter
Core Identifcation
Black numbered cores
Sheath Colour
Black
DIMENSIONS
| NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 18 18 |
1.5 2.5 |
14.5 17.9 |
432 692 |
CONDUCTORS
Class 5 Flexible Conductor
| NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm |
MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km |
| 1.5 2.5 |
0.26 0.26 |
13.3 7.98 |
