| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Insulation Material: | PVC | Type: | High Voltage |
|---|---|---|---|
| Application: | Construction | Conductor Material: | Copper, Copper Clad Aluminum, Copper,aluminium Alloy |
| Jacket: | PE | Core: | 4 Cores |
| Rated Voltage: | 26/35kV | Color: | Black |
| Product Name: | Steel Armored Cable | Product Name: | High Voltage Power Cable XLPE Cable Manufacturer 132kV Cable |
| Port: | Shenzhen/Guangzhou/Hongkong | ||
| High Light: | XLPE High Voltage Power Cables,4 Core hv xlpe cable,132kV hv coaxial cable |
||

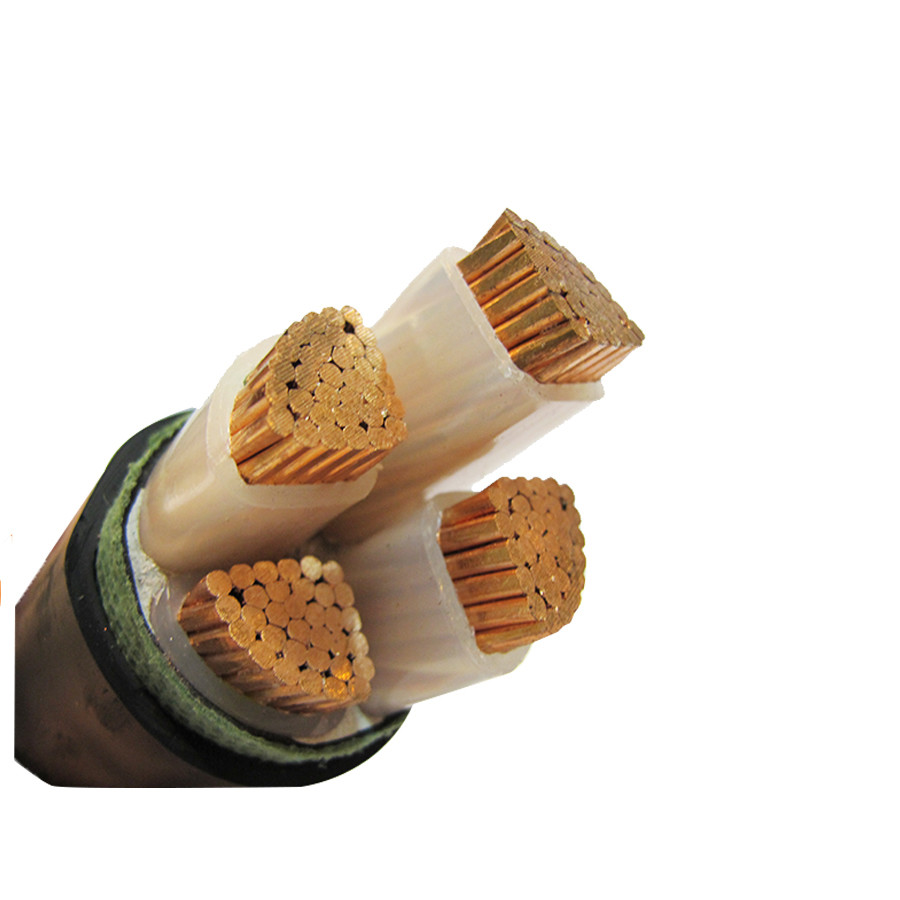

4 Cores 132kV XLPE High Voltage Power Cables For Construction
1. Application :
Used for indoor & outdoor laying,The Cable can bear a certain laying traction,but can't bear the mechanical force from outide.Single core cable can't be allowed to lay in the magnetic pipe . The Cable is used for fixed laying in the rated voltage (U0/U)0.6/1KV,3.6/6KV & below for power transmission.
2. Product implementation standard:
GB/T12706-2002 Rated Voltage 1KV(uM=1.2KV) to 35KV(uM=40.5Kv) insulation electrical power & auxilary IEC60502-1997 Rated voltage 1-30kV Insulation electrical power cable & auxiliaries.
3. Operational performances:
(1) Working temperature:
The Max. conductor working temperature: 70℃ Centigrade Conductor short circuit temperature : highest temperature not more than 160℃ , the longest time not more than 5 seconds.
The min.bending radius of cable installation :
Table 1 :
|
Item |
Single-core Power Cable |
3 Cores Electrical Power Cable |
||
|
No Armour |
With Armour |
No Armour |
With Armour |
|
|
The Min.bending radius of cable installation |
20D |
15D |
15D |
12D |
|
The min.bending radius near connecting box & terminal cable |
15D |
12D |
12D |
10D |
|
Note : "D" refers to outside diameter of electrical power cable. |
||||
(2) Installation laying temperature :
Cable installation laying temperature not less than 0℃ Cable current-carrying capacity laying mode & basic parameters: Air laying: enviromental temperature: 40℃ Soil laying: enviromental temperature: 25℃ Soil Thermal resistance coefficient: 1.0.m/W Cable laying arrangments:
Single core calbe arrangment :Flat type. (adjacent space equals to cable outside diameter);
