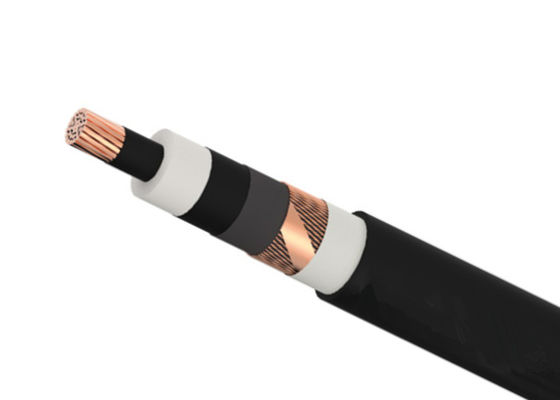

RoHS XLPE Insulated 150mm2 110kV HV Power Cable With HDPE Sheath

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO/RoHS/CE
Minimum Order Quantity: 200 meters
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 15-20 working days or Negotiation
Payment Terms: T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability: 50000meters per week
Conductor: Class 2 Copper Or Aluminum Conductor Conductor Screen: Extruded Semi-conductive XLPE
Insulation: XLPE Insulation Screen: Extruded Semi-conductive XLPE
Separator: Water Swellable Tape Screen: Copper Wire Screen, With A Counter Helix Of Copper Tape
Sheath: HDPE
High Light:

110kV HV Power Cable

,

110kV 1 core shielded cable

,

150mm2 hv xlpe cable

XLPE Single Core 110kV HV Power Cable With HDPE Sheath 1 Core Shielded Cable



APPLICATION:



The high voltage power cables contained within this datasheet are suitable for the primary distribution of power up to a maximum network voltage of 110kV. Suitable for locations where mechanical protection is afforded by other means and where the additional protection of a moisture barrier has been determined not to be necessary, see 2XS(FL)2Y and A2XS(FL)2Y. The cables are triple extruded using proprietary materials on modern catenary line equipment to the latest IEC standards. Waterblocking tape options ensure that should the cable be damaged, repair lengths and associated works are kept to a minimum. The cables are provided as standard with

a high density polyethylene sheath, chosen to give the best compromise between abrasion resistance and flexibility to ensure installation confidence. The range can be customized to meet specific project demands should the need arise



CONSTRUCTION:
Conductor
Class 2 copper or aluminum conductor, compacted or segment
strand Milliken to BS EN 60228 (previously BS 6360)
Conductor Screen
Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Separator
Water swellable semi-conductive tape
Screen
Copper wire screen, with a counter helix of copper tape
Separator
Water swellable tape
Sheath
HDPE (High Density Polyethylene)

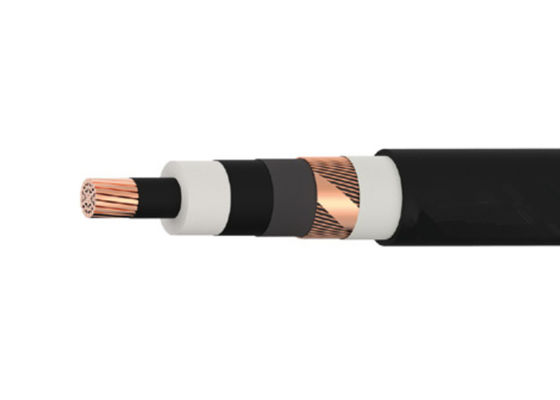

RoHS XLPE Insulated 150mm2 110kV HV Power Cable With HDPE Sheath 0



DIMENSIONS
2XS(F)2Y Copper Conductor

NO. OF
CORES
NOMINAL
CROSS
SECTIONAL
AREA
mm²
ELECTRICAL
PROTECTION
mm2
NOMINAL
DIAMETER OF
CONDUCTOR
mm
NOMINAL
THICKNESS OF
INSULATION
mm
NOMINAL
DIAMETER
OVER
INSULATION
mm
NOMINAL
OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
MINIMUM
BENDING
RADIUS
(FIXED)
mm
MAXIMAL
FORCE OF
DRAGGING
(CONDUCTOR
PULLING)
kN
1
1
1
1
1
1
1
1
150
185
240
300
400
500
630
800
95
95
95
95
95
95
95
95
14.1
15.7
18
20.3
23
26.5
30.3
36.9
18
17
16
15
15
15
15
15
54.9
54.5
54.8
55.1
57.6
61.3
64.5
71.8
64.5
64.1
64.4
64.7
67.4
71.3
74.8
82.6
4910
5145
5614
6085
7075
8185
9740
11869
970
960
970
1000
1010
1070
1200
1240
7.5
9.2
12
15
20
25
31.5
40


A2XS(F)2Y Aluminium Conductor

NO. OF
CORES
NOMINAL
CROSS
SECTIONAL
AREA
mm²
ELECTRICAL
PROTECTION
mm2
NOMINAL
DIAMETER OF
CONDUCTOR
mm
NOMINAL
THICKNESS OF
INSULATION
mm
NOMINAL
DIAMETER
OVER
INSULATION
mm
NOMINAL
OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
MINIMUM
BENDING
RADIUS
(FIXED)
mm
MAXIMAL
FORCE OF
DRAGGING
(CONDUCTOR
PULLING)
kN
1
1
1
1
1
1
1
1
1
1
150
185
240
300
400
500
630
800
1000
1200*
95
95
95
95
95
95
95
95
95
95
14.1
15.7
18
20.3
23
26.5
30.3
36.9
37.9
44
18
17
16
15
15
15
15
15
15
15
54.9
54.5
54.8
55.1
57.6
61.3
64.5
71.8
72.8
78
64.5
64.1
64.4
64.7
67.4
71.3
74.8
82.6
84
90
3995
4026
4156
4263
4746
5287
5908
6925
7409
8010
970
960
970
1000
1010
1070
1200
1240
1260
1350
4.5
5.5
7.2
9
12
15
18.9
24
30
36



CONDUCTOR

Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS
SECTIONAL AREA
mm²
MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Circular Circular Compacted Annealed Copper Conductor Aluminum or Aluminum
Alloy Conductor
ohms/km
Cu Al Cu Al Plain Wires
ohms/km

150
185
240
300
400
500
630
800

1000
1200*

37
37
37
61
61
61
91
91

91
/

37
37
37
61
61
61
91
91

91
/

18
30
34
34
53
53
53
53

53
/

15
30
30
30
53
53
53
53

53
/

0.124
0.0991
0.0754
0.0601
0.047
0.0366
0.0283
0.0221

0.0176
/

0.206
0.164
0.125
0.1
0.0778
0.0605
0.0469
0.0367

0.0291
0.0247















































ELECTRICAL CHARACTERISTICS

1= cross-bonding of grounding
2= both ends grounded

CONDUCTOR TYPE COPPER CONDUCTOR ALUMINIUM CONDUCTOR
INSTALLATION GROUND AIR GROUND AIR
METHOD OF
INSTALLATION
Flat Spaced Trefoil Flat Spaced Trefoil Flat Spaced Trefoil Flat Spaced Trefoil
METHOD OF
EARTHING
1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2
NOMINAL CROSS
SECTIONAL AREA
mm²
CURRENT RATINGS
Amps
150
185
240
300
400
500
630
800
1000
1200*
435
490
570
640
720
825
940
1055
-
-
406
448
505
535
595
650
705
755
-
-
410
465
540
610
690
785
890
1000
-
-
406
453
519
580
650
730
810
885
-
-
551
630
740
805
915
1060
1235
1415
-
-
515
574
659
685
775
860
950
1040
-
-
478
546
645
710
820
945
1085
1235
-
-
473
538
628
685
785
895
1010
1130
-
-
335
380
445
495
565
645
740
845
950
1025
325
363
416
445
500
555
610
665
720
755
320
360
420
475
540
620
710
805
900
970
320
358
416
460
525
595
670
745
820
870
431
494
583
625
715
835
975
1130
1295
1420
415
465
541
565
640
725
820
910
1005
1070
373
425
504
550
640
745
865
995
1135
1235
373
423
499
540
625
720
830
940
1055
114























































DE-RATING FACTORS

AMBIENT TEMPERATURE 10ºC 15ºC 20ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC 55ºC 60ºC 65ºC 70ºC
In Ground 1.07 1.04 1.00 0.96 0.93 0.89 0.85 0.80 0.76 0.71 0.65 0.60 0.53
In Air 1.15 1.12 1.08 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.71 0.65 0.58
