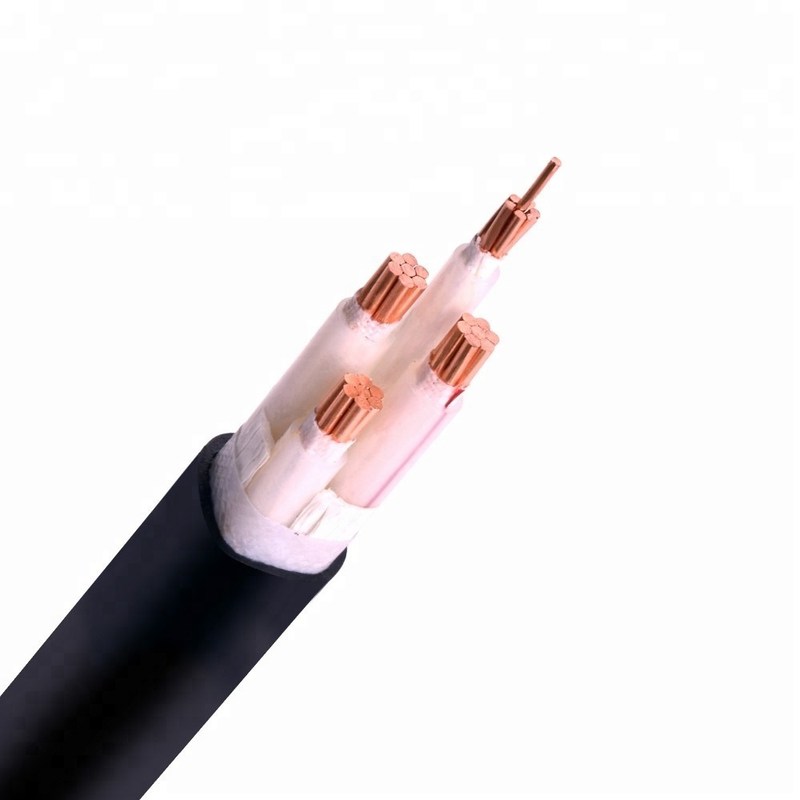

Name: Cross Linked 66KV 185mm2 Hv Electrical Cables , 150mm2 High Voltage Shielded Cable
Brand: OEM

Cross Linked 66KV 185mm2 Hv Electrical Cables , 150mm2 High Voltage Shielded Cable

Basic Information

Place of Origin:	China
Brand Name:	OEM
Certification:	ISO/RoHS/CE

Minimum Order Quantity:	200 meters
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	15-20 working days or Negotiation
Payment Terms:	T/T, L/C, D/P, West Union, Paypal, Secure Payments
Supply Ability:	50000meters per week

Contact Now

Insulation Material:

Xlpe

Type:

High Voltage

Application:

Construction

Conductor Material:

Copper

Jacket:

PVC

Color:

Request

Product Name:

XLPE Insulated

Conductor:

Bare Copper

Insulation:

Mica+XLPE

Core:

Multi-core

Name:

High Voltage Power Cable

Rated Voltage:

11KV 66KV

High Light:

66KV flexible high voltage wire

185mm2 hv electrical cables

150mm2 high voltage shielded cable

Cross Linked Polyethylene HV Power Cable 11KV 66KV 185mm2 150mm2

Product feature and purpose:

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties,powerful resistance to chemical attack.In addition, light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In term of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.

Operative standard:

GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.

Operational performance:

The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).

NO.of cores×section (mm²)	Normal insulation thickness(mm)	Normal thickness of oversheath		Approximate overall diameter of cable(mm)		Approximate weight of cable(kg/km)
		Normal thickness of oversheath		Approximate overall diameter of cable(mm)		Cu		AL
		Unarmoured	Armoured	Unarmoured	Armoured	YJV	YJV22	YJLV	YJLV22
4×4	0.7	1.8	1.8	12.5	18.1	282	430	/	/
4×6	0.7	1.8	1.8	14.7	17	383	545	/	/
4×10	0.7	1.8	1.8	16.9	19.1	565	752	390	517
4×16	0.7	1.8	1.8	19.3	21.6	783	1020	416	663
4×25	0.9	1.8	1.8	23.5	25.7	1241	1502	593	902
4×35	0.9	1.8	1.8	26.7	28.7	1631	1957	776	1096
4×50	1.0	1.8	1.9	28.0	32.6	2080	2812	961	1770
4×70	1.1	2.0	2.1	33.2	37.5	2952	3796	1302	2222
4×95	1.1	2.1	2.3	38.0	42.6	3970	4962	1693	2757
4×120	1.2	2.3	2.4	40.9	46.4	4894	5913	2077	3363
4×150	1.4	2.4	2.6	46.0	51.3	5980	7170	2852	3878
4×185	1.6	2.6	2.7	52.5	57.8	7442	8802	3173	4618
4×240	1.7	2.8	3.0	59.4	64.6	9764	11289	4032	5782
4×300	1.8	3.0	3.1	66.2	71.6	12122	13856	4924	6735
4×400	2.0	3.3	3.4	73.8	80.3	15624	18407	6272	9313
4×500	2.2	3.5	3.7	89.3	96	19877	23264	7667	11062
4×630	2.4	3.8	4.0	99.6	106.3	25124	28895	9514	13293
