Place of Origin: | China |
---|---|
Brand Name: | OEM |
Certification: | ISO/RoHS/CE |
Minimum Order Quantity: | 200 meters |
Price: | Negotiation |
Packaging Details: | Standard export package |
Delivery Time: | 15-20 working days or Negotiation |
Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
Supply Ability: | 50000meters per week |
Insulation Material: | XLPE | Type: | High Voltage |
---|---|---|---|
Application: | Construction, Heating | Conductor Material: | Copper |
Jacket: | PVC | Product Name: | Far East XLPE Copper 33KV 240mm2 High Voltage Power Cable |
Certificate: | TUV /U-L/ PSE/ EN50618 | Standard: | GB, ISO, IEC, U-L, TUV |
Conductor: | Copper/Aluminum | Insulation: | XLPE PE PVC |
Rated Voltage: | 220/660kv | Feature: | Fire Resistance/ Flame Retardant |
Sheath: | ZR-PVC | Color: | Assorted |
High Light: | 240mm2 high voltage electric cable,33KV HV Power Cable,xlpe shielded cable |

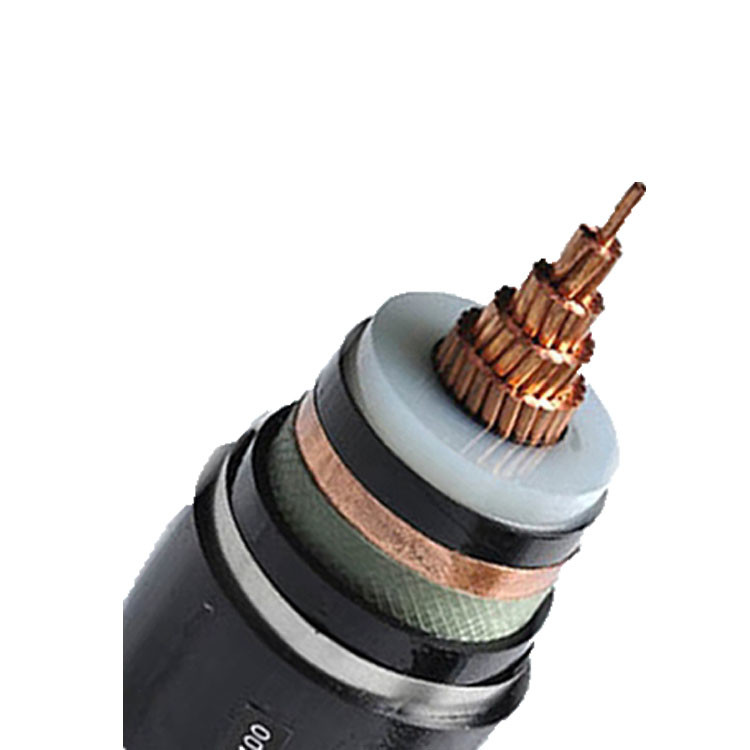

Fire Resistance 33KV 240mm2 HV Power Cable XLPE Insulated Cable
1. Standards
0.6-1kV XLPE Insulated power cable is manufactured according to “insulated power cable and accessories with rated voltage from 1kV to 35kV of GB/T 12706-2008. Meanwhile, product can still be manufactured according to IEC, BS, DIN and American standard if client requests.
Far east XLPE copper 33KV 240mm2 high voltage power cable
2. Applications
The product is suitable for power transmission and distribution lines with rated voltage up to including 0.6/1kV.
3. Operating characteristics
* Rated power frequency voltage U0/U: 0.6/1kV.
* Max. admissible operating temperature of conductor: 900C
* Max. short-circuit temperature of the conductor shall not exceeding 2500C.(Max. sustaining period not exceeding 5S)
* The installation temperature should not be below 00C.
* The bending radius of cable should not less than 15 times.
* The flame-retardant properties of cable comply with grade A, B or C of GB/T 19666-2005.
* Excellent electrical performance, resistance to chemical corrosion.
* The Test voltage(ac.): 3.5kV/5min.
4. Type, Designation and Application of cable
Type |
Name |
Application |
YJV |
Copper conductor XLPE insulated PVC sheathed power cable |
For laying in doors, in tunnels and in cable trench, unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible. |
YJLV |
Aluminum conductor XLPE insulated PVC sheathed power cable |
|
YJY |
Copper conductor XLPE insulated PE sheathed power cable |
|
YJLY |
Aluminum conductor XLPE insulated PE sheathed power cable |
|
YJV22 |
Copper conductor XLPE insulated steel tape armoured PVC sheathed power cable |
For laying in doors, in tunnels and in cable trench, able to bear external mechanical forces, but unable to bear large pulling forces. |
YJLV22 |
Aluminum conductor XLPE insulated steel tape armoured PVC sheathed power cable |
|
YJV23 |
Copper conductor XLPE insulated steel tape armoured PE sheathed power cable |
|
YJLV23 |
Aluminum conductor XLPE insulated steel tape armoured PE sheathed power cable |
|
YJV32 |
Copper conductor XLPE insulated fine steel wire armoured PVC sheathed power cable |
For laying in doors, in tunnels and in cable trench and wells, able to bear external mechanical forces and certain pulling force. |
YJLV32 |
Aluminum conductor XLPE insulated fine steel wire armoured PVC sheathed power cable |
|
YJV33 |
Copper conductor XLPE insulated fine steel wire armoured PE sheathed power cable |
|
YJLV33 |
Copper conductor XLPE insulated fine steel wire armoured PE sheathed power cable |
|
ZA-YJV ZB-YJV ZC-YJV |
Copper conductor XLPE insulated PVC sheathed Flame-retardant power cable |
For laying in doors, in tunnels and in cable trenches, unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible. |
ZA-YJLV ZB-YJLV ZC-YJLV |
Aluminum conductor XLPE insulated PVC sheathed Flame-retardant power cable |
|
ZA-YJV22 ZB-YJV22 ZC-YJV22 |
Copper conductor XLPE insulated steel tape armored PVC sheathed Flame-retardant power cable |
For laying in doors, in tunnels and in cable trenches, able to bear external mechanical forces, but unable to bear large pulling forces. |
ZA-YJLV22 ZB-YJLV22 ZC-YJLV22 |
Aluminum conductor XLPE insulated steel tape armored PVC sheathed Flame-retardant power cable |
|
ZA-YJV32 ZB-YJV32 ZC-YJV32 |
Copper conductor XLPE insulated fine steel wire armored PVC sheathed Flame-retardant power cable |
For laying in doors, in tunnels and in cable trenches, able to bear external mechanical forces and certain pulling force. |
ZA-YJLV32 ZB-YJLV32 ZC-YJLV32 |
Aluminum conductor XLPE insulated fine steel wire armored PVC sheathed Flame-retardant power cable |
5. Range of production
Type |
No. of cores |
Norminal cross sectional area mm2 |
|
YJV YJY ----- YJV22 YJV23 |
----- YJLV YJLV YJLV22 YJLV23 |
1 |
1.0-800 2.5-800 10-800 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
2 |
1.0-300 2.5-300 4-300 4-300 10-300 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
3 |
1.0-400 2.5-400 4-400 4-400 10-400 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
4 |
1.0-400 2.5-400 4-400 4-400 10-400 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
5 |
1.0-400 2.5-400 4-400 4-400 10-400 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
3+1 |
1.0-400 4.0-400 4-400 4-400 10-400 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
3+2 |
1.0-400 4-400 4-400 4-400 10-400 |
YJV YJY ----- YJV22 YJV23 ----- YJV32 YJV33 |
----- YJLV YJLY ----- YJLV22 YJLV23 YJLV32 YJLV33 |
4+1 |
1.0-400 4-400 4-400 4-400 10-400 |
The single core armoured cables are used for D.C. system only. As for A.C. system, the magnetic isolation should be applied on the steel armoured wires or non-magnetical materials should be used. |
