| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Insulation Material: | XLPE | Application: | PV Installation/Solar Project |
|---|---|---|---|
| Conductor Material: | Tinner Copper | Jacket: | XLPE |
| Product Name: | 4mm Solar Cable | Color: | Black,Red |
| Number Of Cores: | Single Core | Construction: | 56/0.30±0.01 |
| Voltage: | 0.6/1kV | Thermal Endurance: | 25 Years |
| Characteristic: | Fire Protection,Low Load | MOQ: | 500m |
| Business Type: | Manufacturer | Packing: | Wooden Drum Or Rolls |
| High Light: | 4mm HV Power Cable,1kV automotive high voltage cable,4mm Xlpe Power Cable |
||

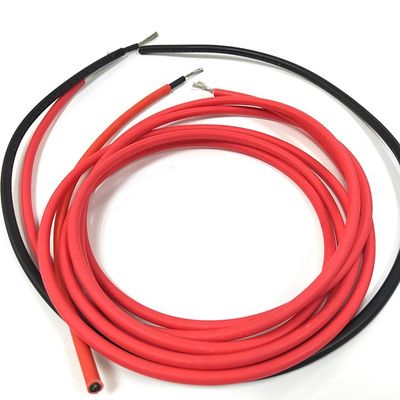

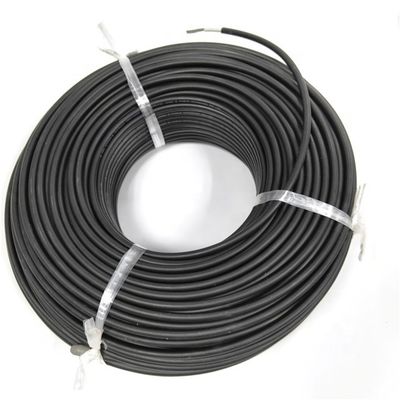

0.6/1kV Single Core 4mm 6mm HV Power Cable For Solar Panel
Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolysis.
These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.
Technical data:
|
Nominal voltage |
U0/U=600/1000V AC,1000/1800V DC |
Test voltage |
6500V,50HZ,5min |
|
Max. conductor temperature |
-40℃ up to +125℃ |
Ambient temperature |
-40℃up to +90℃ |
|
Max. Short circuit temperature |
280℃ |
Bending radius |
fixed installation>4×Φ Occasionally moved>5×Φ |
1. Conductor: Tinned copper.
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4. Fire-resistance performance:IEC 60332-1
5. Approvals:TUV 2PfG 1169/08;EN50268-2
6. Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502
Model Type
|
Size(n/mm2) |
Conductor Construction (n/mm) |
Finished Cable OD(mm) |
Max DC Resistance @20C(ohm/KM) |
Curent (A) (underground installation) |
|
1*4 |
52/0.30±0.008 |
4.85 |
5.09 |
52 |
|
1*6 |
78/0.30±0.008 |
5.55 |
3.39 |
67 |
|
2*4 |
52/0.30±0.008 |
4.85*10.00 |
5.09 |
44 |
|
2*6 |
78/0.30±0.008 |
5.55*10.00 |
3.39 |
57 |
