| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/RoHS/CE |
| Minimum Order Quantity: | 200 meters |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 50000meters per week |
| Conductor Core: | Annealed Copper Or Hard Drawn Aluminum | Insulation Material: | Crosslinked Polyethylene (XLPE) |
|---|---|---|---|
| Armoured Types: | DSTA/SWA/AWA Or Unarmoured | Outer Sheath Material: | Polyvinyl Chloride (PVC) |
| Standard: | BS IEC ASTM DIN, IEC 60502-2, GB12706, IEC60228 | Colour: | Black Or As Requirement |
| Packing: | Wooden-steel Drum, Steel Drum, Wooden Drum | Special Requiremets: | Fire-resistant,flame Retardant,low Smoke Halogen Free |
| Sample: | Y, Provided | Application: | Underground,Construction,Industrial,power Distribution And Transmission Line |
| Voltage: | 12KV | ||
| High Light: | 12KV MV Power Cable,800mm2 XLPE Insulated Cables,800mm2 xlpe electrical cable |
||
630mm2 800mm2 12kV MV XLPE Insulated Cables Low Smoke Halogen Free
MEDIUM VOLTAGE XLPE CABLE VOLTAGE
3.6/6(7.2)kv, 3.6/6.6(7.2)kv, 6/10(12)kv, 6.35/11(12)kv, 8.7/10(15)kv, 12/20(24)kv, 12.7/22(24)kv, 18/30(36)kv, 19/33(36)kv, 21/35kv, 26/35kv

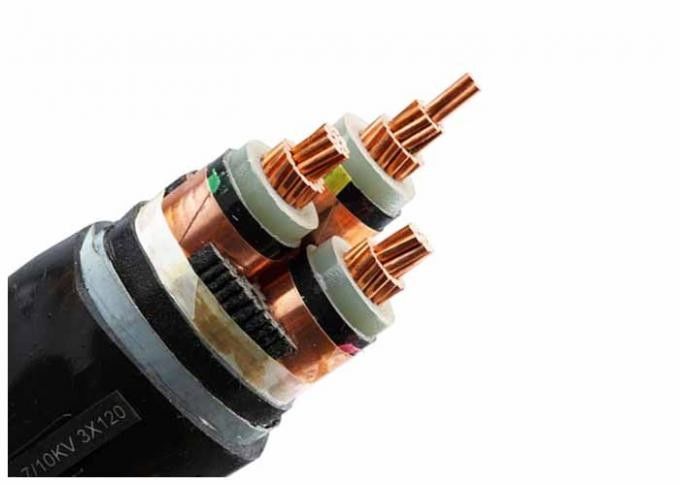

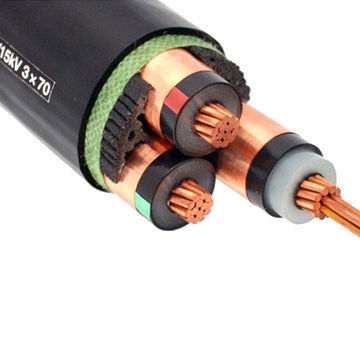

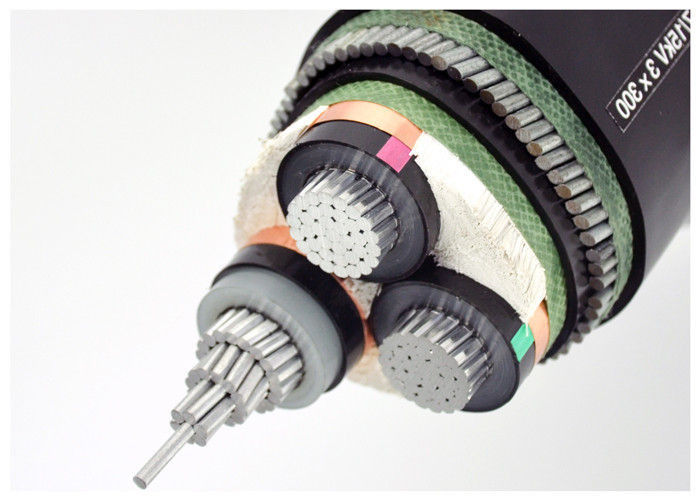

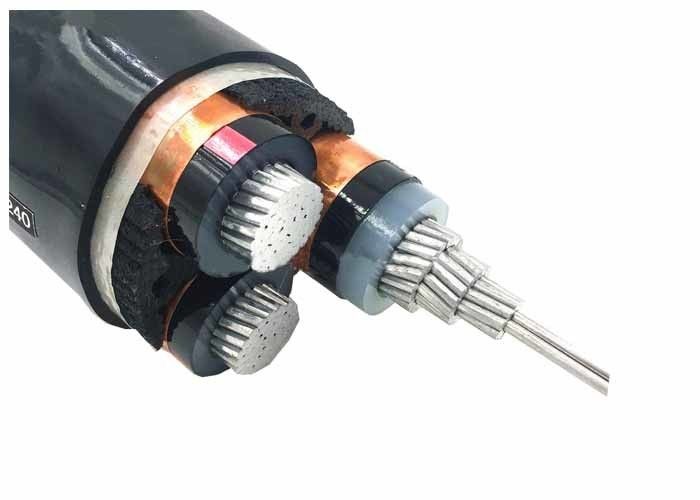

MEDIUM VOLTAGE XLPE CABLE CONSTRUCTION
1. Round bare copper core or aluminum core stranded according to IEC 60228
2. Inner semi-conductive layer
3. Core insulation XLPE
4. Color code according to HD 308 S2
5. Outer semi-conductive layer
6. Semi-conductive tape
7. Copper tape screen
8. Filler
9. PVC inner sheath
10. Double of galvanized steel tape (DSTA) or galvanized steel wire (SWA),
Double of aluminum tape (DATA) or aluminum wire (AWA)
11. PVC outer sheath (red or black)
MEDIUM VOLTAGE XLPE CABLE SECTION AREA
25 mm2, 35 mm2, 50 mm2, 70 mm2, 95 mm2,120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2, 400 mm2, 500 mm2, 630 mm2, 800 mm2
MEDIUM VOLTAGE XLPE CABLE APPLICATION
This mv xlpe cable is used for power transmission and distribution line with voltage at 12kV and below.
The xlpe insulated medium voltage power cable is mainly used in ground, within and outside facilities, outdoor, in cable canals etc. And the armoured xlpe cable could be bear certain heavier mechanical stress and tensile strain.
MEDIUM VOLTAGE XLPE CABLE CHARACTERISTICS
Maximum Conductor Temperature: under normal (90℃ ), emergency (130℃ or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position.
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
MEDIUM VOLTAGE XLPE CABLE TYPE & SIZE
|
MV (11kv 15kv 33kv) Power Cable |
||
|
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV |
No.of Core |
Conductor cross-section area(mm2) |
|
xlpe insulation |
1 core 3 core |
10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
|
Cu core |
||
|
YJV, N2XSY, PVC sheathed power cable |
||
|
YJV22, steel tape armoured, PVC sheathed power cable |
||
|
YJV32, YJV42, steel wire armoured, PVC sheathed power cable |
||
|
Al Core |
||
|
YJLV, NA2XSY, PVC sheathed power cable |
||
|
YJLV22, steel tape armoured,PVC sheathed power cable |
||
|
YJLV32, YJLV42, steel wire armoured, PVC sheathed power cable |
||
CODE MEANING
YJ: XLPE insulation
L: Aluminum conductor
V: PVC sheath
32: Steel wire armoring—3 cores
22: Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
SINGLE CORE 12KV UNARMOURED CABLE TECHNICAL DATA
