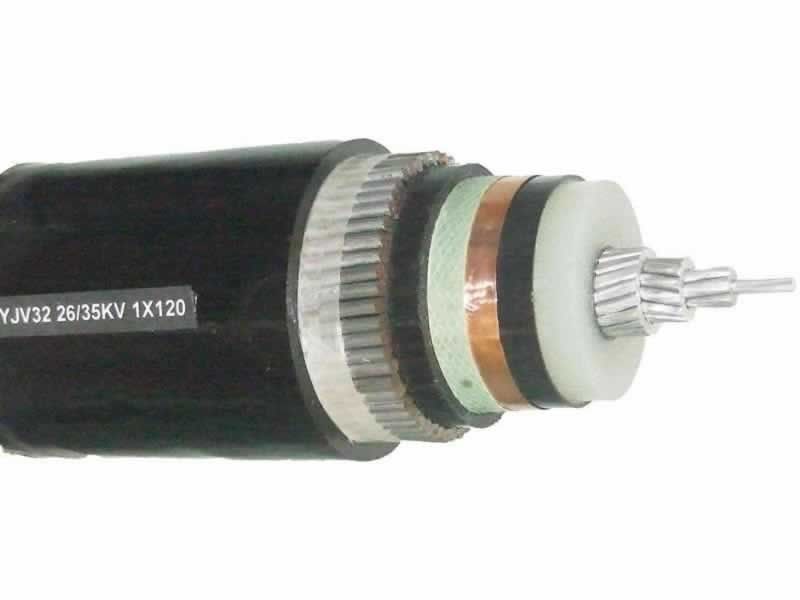

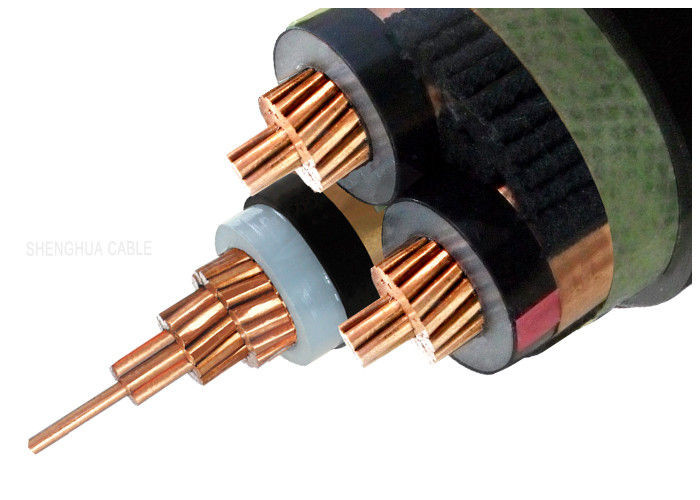

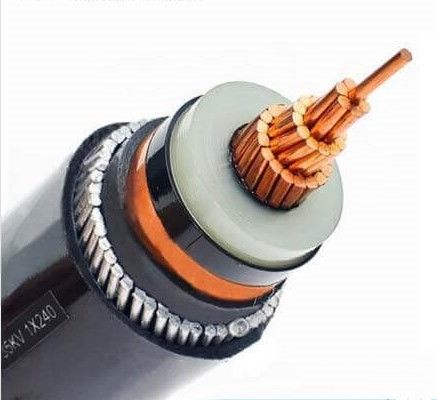

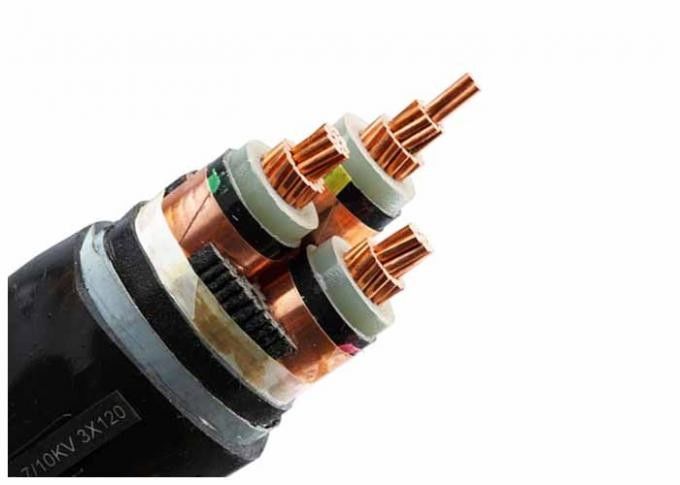

1000mm2 1 Core 3 Core MV Power Cable / Medium Voltage Underground Cable
MEDIUM VOLTAGE POWER CABLE CONSTRUCTION
1. CONDUCTOR
– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact
2. CONDUCTOR SCREEN
– Inner semi-conducting coating
3. INSULATION
– Core insulation of cross-linked polyethylene (XLPE)
4. INSULATION SCREEN
– Outer conductive layer extruded and per-manently welded with the core insulation
Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.
5. METAL SCREEN
– copper tapes helically with a minimum thickness of 0,1 mm.
Separator
– Over the screen as well as under outer sheath, a separating layer must be used (e. g. taping).
6. SHEATH
– Outer sheath of PVC compound
MEDIUM VOLTAGE POWER CABLE CHARACTERISTICS
Construction characteristics |
|
Conductor shape |
Circular stranded (RM) |
Lead free |
Yes |
Insulation |
XLPE |
Screen |
copper tape |
Material of bedding |
Separation tape |
Outer sheath |
PVC |
Usage characteristics |
|
Packaging |
Steel Wooden Drum |
Minimum installation temperature |
-20 °C |
Max. conductor temperature in service |
90 °C |
Short-circuit max. conductor temperature |
250 °C |
Bending factor when laying |
20 x D single core cable 15 x D multi-core cable |
Medium Voltage XLPE Insulated Power Cable Types |
|||
MV Cable Types |
Description |
Cores |
Nomi Section Area (mm2) |
Cu or Al/XLPE/PVC |
copper or aluminum core, xlpe insulated, pvc sheathed, electrical cable |
1 core
3 core
|
25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800, 1000 |
Cu or Al/XLPE/STA/PVC |
copper or aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable |
||
Cu or Al/XLPE/SWA/PVC |
copper or aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable |
1 CORE 12/20KV POWER CABLE DATA
No. of cores and cross -sec. |
Operation |
Nominal |
Insulation |
Sheath |
Outer Ø |
weight |
Current ratings in air 30℃ |
Current ratings buried 20℃ |
maximum DC resistance at 20℃ |
---|---|---|---|---|---|---|---|---|---|
mm² |
kV |
kV |
mm |
mm |
mm |
kg / km |
A |
A |
Ω/km |
1 x 35 |
24 |
12/ 20 |
5.5 |
1.8 |
24.9 |
860 |
205 |
190 |
0.52 |
1 x 50 |
24 |
12/ 20 |
5.5 |
1.8 |
26.4 |
1138 |
245 |
225 |
0.39 |
1 x 70 |
24 |
12/ 20 |
5.5 |
1.9 |
28.1 |
1281 |
305 |
275 |
0.27 |
1 x 95 |
24 |
12/ 20 |
5.5 |
1.9 |
29.9 |
1570 |
370 |
330 |
0.19 |
1 x 120 |
24 |
12/ 20 |
5.5 |
2.0 |
31.3 |
1839 |
430 |
375 |
0.15 |
1 x 150 |
24 |
12/ 20 |
5.5 |
2.0 |
33.1 |
2174 |
490 |
425 |
0.12 |
1 x 185 |
24 |
12/ 20 |
5.5 |
2.1 |
34.7 |
2540 |
560 |
480 |
0.10 |
1 x 240 |
24 |
12/ 20 |
5.5 |
2.2 |
37.1 |
3120 |
665 |
555 |
0.08 |
1 x 300 |
24 |
12/ 20 |
5.5 |
2.2 |
39.5 |
3746 |
765 |
630 |
0.06 |
1 x 400 |
24 |
12/ 20 |
5.5 |
2.3 |
44.1 |
4863 |
890 |
725 |
0.05 |
1 x 500 |
24 |
12/ 20 |
5.5 |
2.4 |
47.6 |
5905 |
1030 |
825 |
0.04 |
1 x 630 |
24 |
12/ 20 |
5.5 |
2.5 |
51.3 |
7220 |
1190 |
940 |
0.03 |
3 CORE 12/20KV POWER CABLE DATA
No.cores x cross-sec. |
Operation |
Nominal |
Insulation |
Sheath |
Outer Ø |
weight |
Current ratings in air 30℃ |
Current ratings buried 20℃ |
maximum DC resistance at 20℃ |
---|---|---|---|---|---|---|---|---|---|
mm² |
kV |
kV |
mm |
mm |
mm |
kg / km |
A |
A |
Ω/km |
3 x 35 |
24 |
12/20 |
5.5 |
2.6 |
52.5 |
3023 |
155 |
185 |
0.52 |
3 x 50 |
24 |
12/20 |
5.5 |
2.7 |
55.5 |
3891 |
180 |
218 |
0.39 |
3 x 70 |
24 |
12/20 |
5.5 |
2.8 |
59.3 |
4396 |
223 |
267 |
0.27 |
3 x 95 |
24 |
12/20 |
5.5 |
3.0 |
63 |
5264 |
271 |
318 |
0.19 |
3 x 120 |
24 |
12/20 |
5.5 |
3.1 |
66.2 |
6190 |
312 |
363 |
0.15 |
3 x 150 |
24 |
12/20 |
5.5 |
3.2 |
69.8 |
7240 |
363 |
417 |
0.12 |
3 x 185 |
24 |
12/20 |
5.5 |
3.3 |
73.7 |
8499 |
404 |
460 |
0.1 |
3 x 240 |
24 |
12/20 |
5.5 |
3.5 |
78.6 |
10353 |
471 |
531 |
0.08 |
3 x 300 |
24 |
12/20 |
5.5 |
3.6 |
83.8 |
12328 |
536 |
596 |
0.06 |
3 x 400 |
24 |
12/20 |
5.5 |
3.8 |
93.6 |
15921 |
630 |
684 |
0.05 |
