Single Core 35KV 250mm2 MV Power Cable EPR Insulation For Feeder Circuits

35kv power cable

250mm2 MV Power Cable

xlpe single core cable

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO/RoHS/CE

Request A Quote

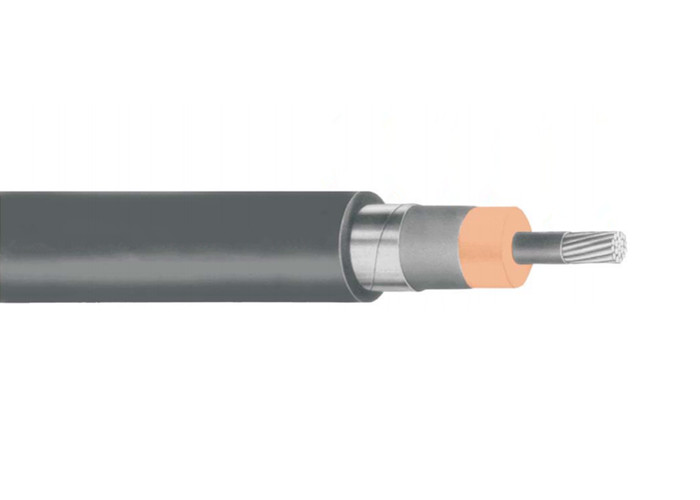

Single Core 35KV 250mm2 MV Power Cable EPR Insulation For Feeder Circuits

Product Details

Conductor:

Compact Stranded Copper

Conductor Screen:

Semi-conductive

Insulation:

EPR

Metal Screen:

Copper Tape

Outer Sheath:

CPE

Name:

MV Power Cables

Highlight:

35kv power cable

250mm2 MV Power Cable

xlpe single core cable

Payment & Shipping Terms

Minimum Order Quantity

200 meters

Price

Negotiation

Packaging Details

Standard export package

Delivery Time

15-20 working days or Negotiation

Payment Terms

T/T, L/C, D/P, West Union, Paypal, Secure Payments

Supply Ability

50000meters per week

Cross Linked Polyethylene 95mm2 MV Power Cable Aluminum 3x1 Core

Get Best Price

Single Core 35KV 250mm2 MV Power Cable EPR Insulation For Feeder Circuits

Get Best Price

Copper Conductor 69kV MV Power Cable 750mm2 PVC Sheath

Get Best Price

XLPE Insulated 800mm2 12KV MV Power Cable Low Smoke Halogen Free

Get Best Price

Contact Now

Product Description

EPR Insulation 35KV 250mm2 350mm2 MV 35kv Power Cable For Feeder Circuits

Application:

35KV MV power cables are recommended for use as feeder circuits, in electric utility generating stations, for distribution circuits, and for feeders or branch circuits in industrial and commercial installations. Type MV cables may be installed in wet or dry locations, indoors or outdoors (exposed to sunlight), in any raceway or underground duct, directly buried if installed in a system with a grounding conductor in close proximity that conforms with NEC Section 250.4(A)(5), or messenger supported in industrial establishments and electric utilities. Sizes 1/0 AWG and larger may also be installed in cable tray.

Product Date:

No.	Conductor Size		Approx. Dia.overall insulated	Approx. Dia.overall Screen	Outer Sheath Thickness		Approx. O.D.		Approx. Weight		Ampacities
No.	AWG or Kcmil	mm²	in.	in.	mils	mm	inches	mm	Net	Gross	Conduit in Air	Underground Duct	Cable Tra
345mils/8.76mm, 100% insulated level
1	1/0	53.5	1.09	1.15	80	2.03	1.33	34.0	1140	1275	215	295	215
2	2/0	67.4	1.12	1.19	80	2.03	1.37	35.0	1270	1380	255	335	245
3	3/0	85.0	1.17	1.23	80	2.03	1.42	36.1	1420	1605	290	380	275
4	4/0	107.0	1.23	1.29	80	2.03	1.47	37.4	1595	1800	330	435	315
5	250	127.0	1.27	1.33	80	2.03	1.52	38.7	1760	1950	365	475	345
6	350	177.0	1.36	1.43	80	2.03	1.61	41.2	2150	2420	440	575	415
7	500	253.0	1.48	1.54	80	2.03	1.73	43.9	2720	3014	535	700	500
8	750	380.0	1.66	1.75	110	2.79	1.97	50.1	3765	4240	655	865	610
9	1000	507.0	1.81	1.86	110	2.79	2.12	53.9	4671	5300	755	1005	690

No.	Conductor Size		Approx. Dia.overall insulated	Approx. Dia.overall Screen	Outer Sheath Thickness		Approx. O.D.		Approx. Weight		Ampacities
No.	AWG or Kcmil	mm²	in.	in.	mils	mm	inches	mm	Net	Gross	Conduit in Air	Underground Duct	Cable Tra
420mils/10.7mm, 133% insulated level
1	1/0	53.5	1.24	1.30	80	2.03	1.49	37.9	1350	1535	215	295	215
2	2/0	67.4	1.28	1.34	80	2.03	1.53	39.0	1470	1665	255	335	245
3	3/0	85.0	1.32	1.39	80	2.03	1.57	40.0	1630	1825	290	380	275
4	4/0	107.0	1.39	1.45	80	2.03	1.64	41.9	1840	2085	330	435	315
5	250	127.0	1.42	1.48	80	2.03	1.69	42.9	1985	2250	365	475	345
6	350	177.0	1.52	1.58	110	2.79	1.83	46.5	2495	2770	440	575	415
7	500	253.0	1.63	1.69	110	2.79	1.94	49.3	3085	3555	535	700	500
8	750	380.0	1.81	1.87	110	2.79	2.12	53.9	4055	4680	655	865	610
9	1000	507.0	1.97	2.02	110	2.79	2.27	57.6	5980	5630	755	1005	690
